    17-Inch Android All-in-One for Factory Automation and Security Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E170BAWFS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    17-Inch Android All-in-One for Factory Automation and Security Systems

    17-Inch Android All-in-One for Factory Automation and Security Systems

    The 17-inch Android all-in-one system is an ideal solution for factory automation and industrial control environments. With a 1280 x 1024 resolution, the display offers crisp visuals and vibrant colors, making it well-suited for monitoring real-time data in production lines. This system can seamlessly integrate with factory equipment, allowing operators to oversee machine performance, monitor energy consumption, and track production metrics in a user-friendly interface. The device’s Android operating system supports robust connectivity options, including Ethernet and Wi-Fi, enabling smooth communication between devices and cloud-based management systems. Its compact design allows for easy installation in control rooms, workstations, or factory floors, ensuring space-efficient operations without compromising on functionality.

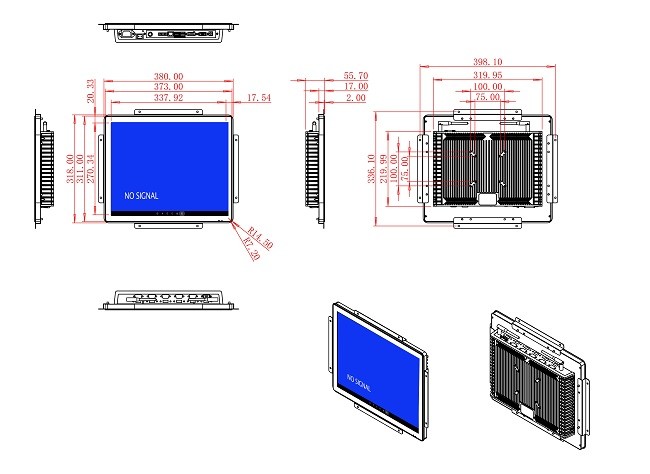

    LCD Panel ParametersScreen Size17 Inch
    Display Area337.92 mm.(Height) X 270.34(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1280 X 1024
    Display Color16.7M , 72% NTSC
    Brightness250cd/
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time20ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 13.0
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2OTG USB2.0 x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Package SizeDevice Dimensions380 X 318 X 55.7mm.
    Net Weight5.5 Kilogram
    Package Size45 X 38.5 X 15Centimeter
    Gross Package Weight per Unit6 Kilogram

    In addition to factory automation, the 17-inch Android system is also a powerful tool for security applications. When integrated into security monitoring systems, this device provides a reliable interface for displaying surveillance footage and live camera feeds. Its high contrast ratio and wide viewing angles ensure that images are clearly visible from multiple directions, even in brightly lit environments. Security personnel can monitor live feeds from multiple cameras and receive real-time alerts, all from a single, centralized display. The system’s ability to connect to various IoT devices and smart sensors makes it versatile for use in monitoring various security metrics, including access control, motion detection, and environmental sensors, enhancing the efficiency of security operations in commercial and industrial spaces.

    17-Inch Android All-in-One for Factory Automation and Security Systems

    17-Inch Android All-in-One for Factory Automation and Security Systems17-Inch Android All-in-One for Factory Automation and Security Systems17-Inch Android All-in-One for Factory Automation and Security Systems17-Inch Android All-in-One for Factory Automation and Security Systems

    The 17-inch Android all-in-one system also excels in interactive digital signage and self-service kiosk applications. With its touchscreen interface and high-definition resolution, it allows users to engage with dynamic content, whether for wayfinding, product displays, or information dissemination in public venues such as airports, malls, or corporate offices. The Android OS enables remote management, making it easy to update content and ensure that information remains current. The system’s Bluetooth connectivity also facilitates wireless communication with other devices, such as barcode scanners and payment systems, further enhancing the interactivity of kiosks. This system’s versatility ensures that it serves as a powerful tool for digital signage, interactive advertisements, and customer service, providing businesses with an efficient and effective way to engage and inform their audience.
