17-Inch Windows Monitor for Factory Automation and Security Systems

Shenzhen ZXT LCD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 17-Inch Windows Monitor for Factory Automation and Security Systems from wholesalers

    Buy cheap 17-Inch Windows Monitor for Factory Automation and Security Systems from wholesalers
    • Buy cheap 17-Inch Windows Monitor for Factory Automation and Security Systems from wholesalers
    • Buy cheap 17-Inch Windows Monitor for Factory Automation and Security Systems from wholesalers

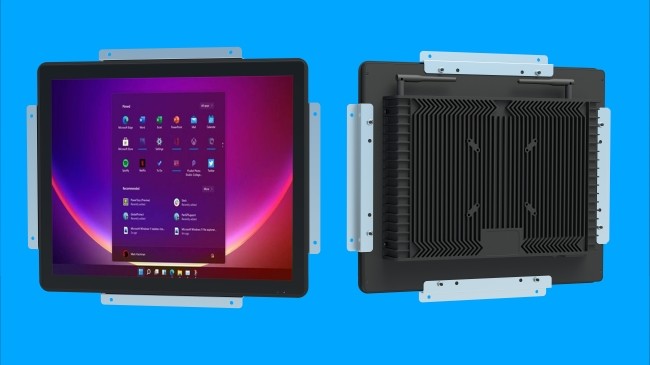

    17-Inch Windows Monitor for Factory Automation and Security Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E170BPWFS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    17-Inch Windows Monitor for Factory Automation and Security Systems

    17-Inch Windows Monitor for Factory Automation and Security Systems

    The 17-inch Windows monitor provides a highly effective solution for factory automation systems and industrial control applications. With a clear 1280x1024 resolution, the display offers crisp and accurate visuals for monitoring production lines, machinery, and control panels. Its high contrast ratio of 1200:1 ensures that even in environments with challenging lighting conditions, such as factories or workshops, the screen's content remains visible and readable. The 250cd/m² brightness and wide viewing angles make it ideal for integration into control rooms, where operators need to view real-time data, alerts, and system information without distortion from various angles. With its integrated Ethernet and Wi-Fi capabilities, remote monitoring and control become seamless, contributing to the efficiency and accuracy of industrial operations.


    LCD Panel ParametersScreen Size17 Inch
    Display Area337.92 mm.(Height) X 270.34(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1280 X 1024
    Display Color16.7M , 72% NTSC
    Brightness250cd/
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time20ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Package SizeDevice Dimensions380 X 318 X 55.7mm.
    Net Weight5.5 Kilogram
    Package Size45 X 38.5 X 15Centimeter
    Gross Package Weight per Unit6 Kilogram

    In security systems, the 17-inch monitor proves invaluable for surveillance and monitoring applications. Its large, clear display makes it perfect for security command centers where multiple video feeds from CCTV cameras need to be viewed simultaneously. The fast response time and strong color accuracy ensure that security personnel can track fast-moving objects or incidents without delay. Whether used for video surveillance in warehouses, banks, or malls, this monitor guarantees optimal performance in high-stakes environments. Its ability to integrate into complex security infrastructures allows for the real-time display of incident alerts, video feeds, and other vital data, all within a compact yet efficient form factor.

    17-Inch Windows Monitor for Factory Automation and Security Systems

    17-Inch Windows Monitor for Factory Automation and Security Systems17-Inch Windows Monitor for Factory Automation and Security Systems17-Inch Windows Monitor for Factory Automation and Security Systems17-Inch Windows Monitor for Factory Automation and Security Systems

    This versatile 17-inch monitor also finds extensive use in embedded systems for transportation hubs like airports or train stations. Here, it can be employed for ticketing kiosks, passenger information systems, and real-time scheduling displays. Its Windows OS compatibility ensures smooth integration with existing software solutions, while the ability to handle multiple media formats makes it perfect for dynamic content presentation, from video ads to real-time announcements. With low power consumption and long-lasting durability, this monitor excels in environments that require continuous operation, such as control systems for public transportation. It provides both reliability and ease of use, crucial for environments where performance cannot be compromised.


    Quality 17-Inch Windows Monitor for Factory Automation and Security Systems for sale
