17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring

Shenzhen ZXT LCD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring from wholesalers

    Buy cheap 17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring from wholesalers
    • Buy cheap 17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring from wholesalers
    • Buy cheap 17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring from wholesalers

    17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E170WLCTS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

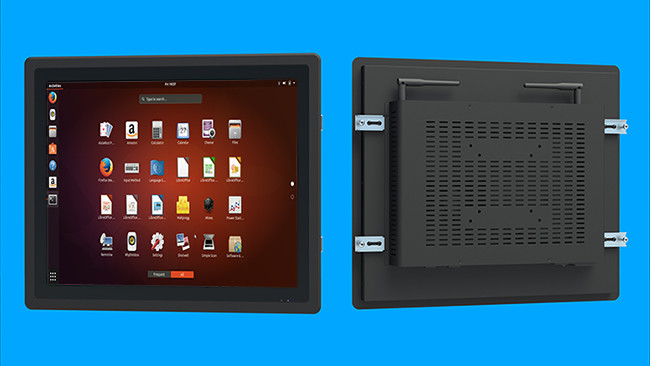

    17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring

    17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring

    LCD Panel ParametersScreen Size17 Inch
    Display Area337.92 mm.(Height) X 270.34(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1280 X 1024
    Display Color16.7M , 72% NTSC
    Brightness250cd/m²
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time20ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10℃ ~ +50℃, ≤ 85%RH
    Storage Temperature and HumidityLess than 20℃ ~ +60℃, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃

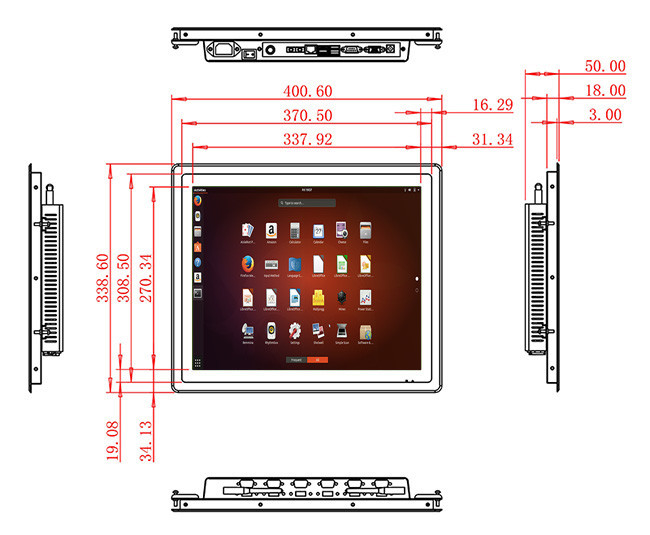

    Package SizeDevice Dimensions400.6 X 338.6 X 50 mm.
    Net Weight5.5 Kilogram
    Package Size48 X 39 X 15 Centimeter
    Gross Package Weight per Unit6 Kilogram


    17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring17-Inch Embedded Linux Display for Security Systems and Industrial Monitoring
