    23.6-Inch Display for Logistics Dashboards and Automation Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E236BWFS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    23.6-Inch Display for Logistics Dashboards and Automation Systems

    23.6-Inch Display for Logistics Dashboards and Automation Systems


    LCD Panel ParametersScreen Size23.6 Inch
    Display Area522 mm.(Height) X 294(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7m , 72% NTSC
    Brightness250cd/
    Contrast Ratio1000 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time14ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency100Hertz
    Audio Parameters
    (External Speaker Option)
    Audio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Onboard InterfaceHDMI Input1
    VGA Input1
    DVI Input1
    USB Type B or any desired USB Type1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 45 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    AccessoriesPower Cord Length1.5m
    HDMI Cable Length2m
    USB-A to USB-B Cable Length1.5m
    Stereo Speaker Size with Connector99*45*20mm
    Stereo Speaker Length1.5m

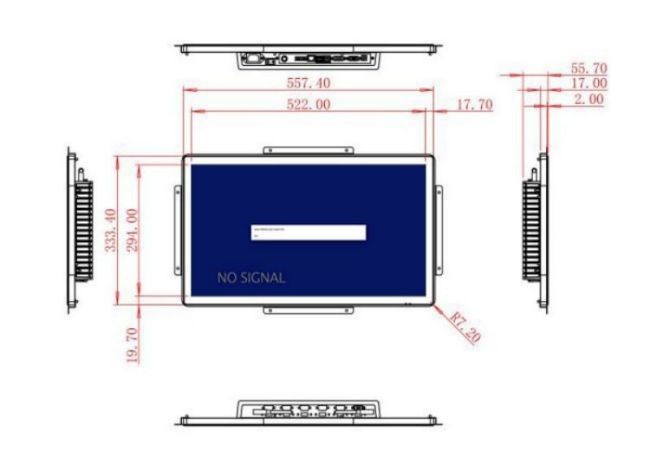

    Package SizeDevice Dimensions564.4 X 340.4 X 55.7mm.
    Net Weight8 Kilogram
    Package Size54 X 42 X 15Centimeter
    Gross Package Weight per Unit9 Kilogram
