    12.1-Inch Professional Windows Screen for Medical Devices and Automation

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E121WPB
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    12.1-Inch Professional Windows Screen for Medical Devices and Automation

    12.1-Inch Professional Windows Screen for Medical Devices and Automation

    The 12.1-inch professional display is designed for a wide range of medical devices and automation systems, providing reliable performance and high-quality visuals in demanding environments. Featuring a resolution of 1280 x 800 pixels, this display offers sharp, clear images with vibrant 16.7 million colors. Whether it's used for patient monitoring systems, surgical control panels, or diagnostic imaging equipment, this monitor excels in delivering critical data with precision. With a brightness of 400 cd/m² and 1200:1 contrast ratio, it ensures visibility even under intense lighting conditions, making it ideal for healthcare environments where clarity and accuracy are crucial. The wide viewing angle ensures that data can be viewed from multiple angles, making it a versatile choice for devices in operating rooms or patient care areas.

    LCD Panel ParametersScreen Size12.1 Inch
    Display Area245.76 mm.(Height) X 184.32(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution800 X 6001280 X 800
    Display Color16.7M16.7M
    Brightness350 cd/㎡400 cd/㎡
    Contrast Ratio1000 :11200 :1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)85°/85°/85°/85° (Type)(CR≥10)
    Response Time30ms25ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 25 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃

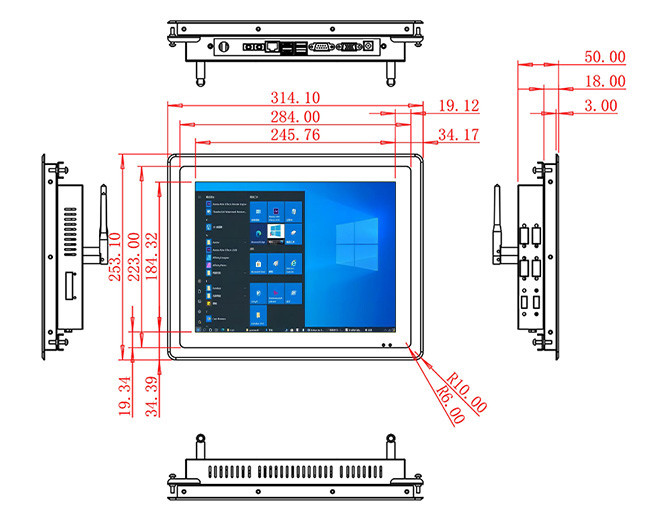

    Package SizeDevice Dimensions314.1 X 253.1 X 50mm.
    Net Weight3 Kilogram
    Package Size36.8 X 16.3 X 15Centimeter
    Gross Package Weight per Unit4 Kilogram


    This 12.1-inch professional screen also plays a vital role in industrial automation and factory management systems, where it serves as a robust and user-friendly interface for controlling complex machinery and systems. With integrated Wi-Fi, Ethernet ports, and HDMI/USB connectivity, the display can be seamlessly connected to various equipment like robotic arms, sensors, and supervisory control and data acquisition (SCADA) systems. The monitor's ability to withstand high operational temperatures (from 0°C to 50°C) and its low power consumption (≤ 25W) make it an ideal solution for smart factories and industrial control panels. It is highly effective in environments where real-time data visualization and interaction are essential to maintaining efficient workflows and ensuring system reliability.

    12.1-Inch Professional Windows Screen for Medical Devices and Automation12.1-Inch Professional Windows Screen for Medical Devices and Automation12.1-Inch Professional Windows Screen for Medical Devices and Automation12.1-Inch Professional Windows Screen for Medical Devices and Automation12.1-Inch Professional Windows Screen for Medical Devices and Automation12.1-Inch Professional Windows Screen for Medical Devices and Automation
    Additionally, this 12.1-inch screen is well-suited for automated kiosks, interactive digital signage, and self-service terminals. In public spaces, such as airports, malls, and train stations, it can provide information, wayfinding, and entertainment while being user-friendly and energy-efficient. Its compact design and robust construction make it perfect for use in outdoor environments and interactive advertising displays, where durability is key. For transportation hubs, it can integrate into ticketing systems or interactive maps, enhancing the customer experience. With its high-definition display, it can effectively display rich multimedia content, making it ideal for corporate lobbies, trade shows, and event management systems. The flexibility of this monitor ensures it adapts to a broad array of applications where reliable performance and clear visuals are required.
