    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E104WPB
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

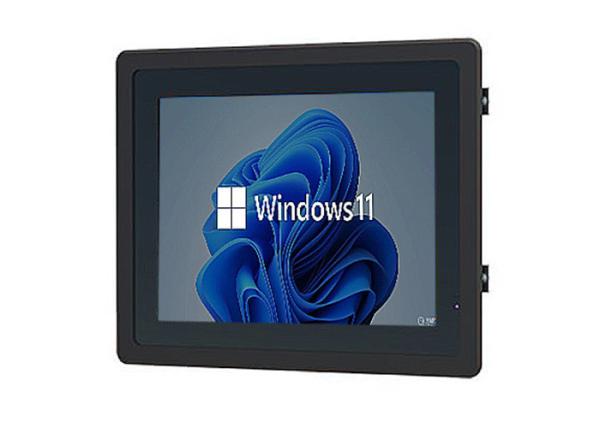

    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    The 10.4-inch Windows display is a compact and powerful solution for industrial dashboards and HMI (Human-Machine Interface) systems. With a resolution of 800 x 600 pixels and a brightness of 400cd/m², it offers clear visibility in challenging industrial environments, ensuring that operators can monitor critical machinery and equipment efficiently. This screen is perfect for applications such as control panels and monitoring systems in factories, assembly lines, and manufacturing plants. Its 700:1 contrast ratio ensures excellent visibility of data and alerts, while the wide temperature tolerance (0°C to 50°C) guarantees reliability even in harsh working conditions.

    LCD Panel ParametersScreen Size10.4 Inch
    Display Area211.2 mm.(Height) X 158.4(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution800 X 600
    Display Color16.7M
    Brightness400cd/m²
    Contrast Ratio700 : 1
    Viewing Angle (Up/Down/Left/Right)80°/80°/70°/70° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600
    RAM4GB
    Storage Memory Capacity128GB
    OSWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 15 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃
    Package SizeDevice Dimensions281.1 X 231.1 X 50 mm.
    Net Weight2 Kilogram
    Package Size33.5 X 18.5 X 15 Centimeter
    Gross Package Weight per Unit2.5 Kilogram

    Designed with rugged performance in mind, this 10.4-inch display also serves as an ideal interface for automated systems in sectors like transportation and logistics. Whether for vehicle control systems, fleet management dashboards, or warehouse automation, the screen provides critical real-time updates in a format that's both easy to read and interact with. Its multiple USB ports and HDMI input allow for seamless integration with a variety of industrial devices, making it a versatile choice for connecting to sensors, scanners, or other equipment. The integrated Wi-Fi connectivity (150Mbps) allows for remote monitoring and data access, enhancing operational efficiency and control.


    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    In addition to industrial use, this Windows-based display is well-suited for embedded systems in medical devices or building automation. It can be integrated into diagnostic equipment or patient monitoring systems, offering an intuitive interface for medical staff to access real-time health data and patient information. Additionally, its compact form factor makes it an ideal choice for smart building solutions where space is limited. Whether controlling lighting, heating, or security systems, the display ensures smooth communication and control with clear visuals and fast response times. With low power consumption (≤15W), this display is also an energy-efficient solution for long-term use in all these applications.
