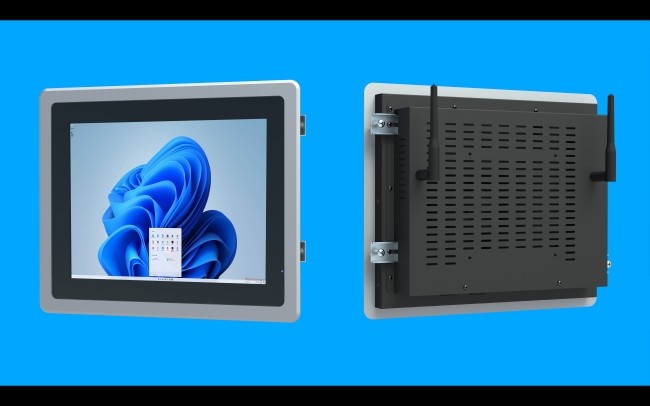

10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

Shenzhen ZXT LCD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10.4-Inch Windows Display for Industrial Dashboards and HMI Systems from wholesalers

    Buy cheap 10.4-Inch Windows Display for Industrial Dashboards and HMI Systems from wholesalers
    • Buy cheap 10.4-Inch Windows Display for Industrial Dashboards and HMI Systems from wholesalers
    • Buy cheap 10.4-Inch Windows Display for Industrial Dashboards and HMI Systems from wholesalers

    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E104WPS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    The 10.4-inch Windows display provides a high-performance solution for industrial dashboards and human-machine interface (HMI) systems. With a clear resolution of 800 x 600 pixels and a brightness of 400cd/m², this display ensures optimal visibility even in environments with intense ambient lighting. This screen is ideal for monitoring control panels, machinery systems, or production line setups, where real-time data visualization is critical. Its 16.7 million colors and 700:1 contrast ratio allow for easy viewing of detailed metrics, alerts, and operational data, improving productivity and operational safety in factories, power plants, and automation hubs. The wide temperature tolerance (from 0°C to 50°C) ensures reliable performance in challenging industrial conditions.

    LCD Panel ParametersScreen Size10.4 Inch
    Display Area211.2 mm.(Height) X 158.4(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution800 X 600
    Display Color16.7M
    Brightness400cd/m²
    Contrast Ratio700 : 1
    Viewing Angle (Up/Down/Left/Right)80°/80°/70°/70° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600
    RAM4GB
    Storage Memory Capacity128GB
    OSWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 15 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃
    Package SizeDevice Dimensions281.1 X 231.1 X 50 mm.
    Net Weight2 Kilogram
    Package Size33.5 X 18.5 X 15 Centimeter
    Gross Package Weight per Unit2.5 Kilogram

    In addition to its industrial applications, this 10.4-inch screen excels in automated systems across various sectors, such as transportation, logistics, and warehouse management. Its integrated Wi-Fi functionality makes it an excellent choice for fleet management systems, vehicle control panels, or smart logistics terminals, where real-time communication and monitoring are essential. The screen's versatile USB and HDMI connectivity ensures that it can easily be connected to different devices, such as barcode scanners, RFID readers, and sensor systems, enhancing operational efficiency and reducing downtime. Whether used for automated tracking systems or managing robotic operations, this compact display ensures seamless interaction with machinery and equipment.


    10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems10.4-Inch Windows Display for Industrial Dashboards and HMI Systems

    Furthermore, this Windows-based screen serves as a perfect solution for use in medical equipment, security systems, and building automation controls. Its compact size and low power consumption (≤15W) make it an excellent choice for patient monitoring systems, where it provides medical professionals with real-time updates and easy-to-read diagnostics. In smart buildings, it can be integrated into HVAC systems, security panels, or lighting controls, offering a user-friendly interface for managing complex systems. Whether in healthcare facilities, security control rooms, or automated commercial buildings, the 10.4-inch display provides an intuitive, efficient way to manage and monitor critical systems, all while operating efficiently with low energy consumption.
