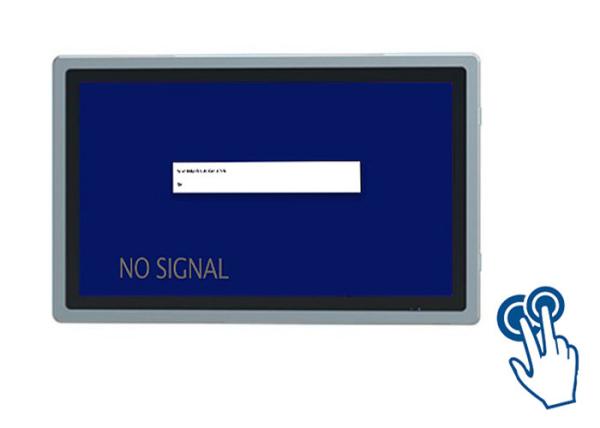

    18.5-Inch Compact Touch Panel for Logistics and Equipment Control

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E185WCTS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    18.5-Inch Compact Touch Panel for Logistics and Equipment Control

    18.5-Inch Compact Touch Panel for Logistics and Equipment Control

    LCD Panel ParametersScreen Size18.5 Inch
    Display Area409.8 mm.(Height) X 230.4(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7m , 72% NTSC
    Brightness250cd/m²
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time14ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10℃ ~ +50℃, ≤ 85%RH
    Storage Temperature and HumidityLess than 20℃ ~ +60℃, ≤ 90%RH
    Audio Parameters
    (External Speaker Option)
    Audio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Onboard InterfaceHDMI Input1
    VGA Input1
    DVI Input1
    USB Type B or any desired USB Type1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃
    AccessoriesPower Cord Length1.5m
    HDMI Cable Length2m
    USB-A to USB-B Cable Length1.5m
    Stereo Speaker Size with Connector99*45*20mm
    Stereo Speaker Length1.5m
    Package SizeDevice Dimensions470.9 X 294.9 X 50mm
    Net Weight6.5 Kilogram
    Package Size55 X 38 X 15Centimeter
    Gross Package Weight per Unit7 Kilogram
