    10.1-Inch Display for Industrial HMI Panels and Retail Signage

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E101B
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    10.1-Inch Display for Industrial HMI Panels and Retail Signage

    10.1-Inch Display for Industrial HMI Panels and Retail Signage

    LCD Panel ParametersScreen Size10.1 Inch
    Display Area217 mm.(Height) X 135.6(Width)mm.
    Aspect Ratio16 : 916 : 10
    LCD Typea-Si TFT-LCD Monitora-Si TFT-LCD Monitor
    Maximum Resolution1280 X 8001920 X 1200
    Display Color16.7M, 50% NTSC16.2M , 50% NTSC
    Brightness400cd/1000cd/
    Contrast Ratio900 : 11000 :1
    Viewing Angle (Up/Down/Left/Right)85°/85°/85°/85° (Type)(CR≥10)80°/80°/80°/80° (Type)(CR≥10)
    Response Time30ms30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio Parameters
    (External Speaker Option)
    Audio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Onboard InterfaceHDMI Input1
    VGA Input1
    DVI Input1
    USB Type B or any desired USB Type1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 15 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    AccessoriesPower Cord Length1.5m
    HDMI Cable Length2m
    USB-A to USB-B Cable Length1.5m
    Stereo Speaker Size with Connector99*45*20mm
    Stereo Speaker Length1.5m

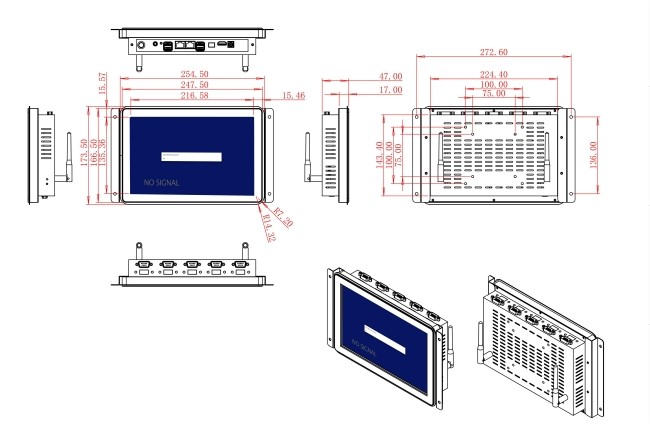

    Package SizeDevice Dimensions259.62 X 172.2 X 41.6 mm.
    Net Weight2 Kilogram
    Package Size31 X 23.3 X 11Centimeter
    Gross Package Weight per Unit4 Kilogram
