    32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E320BP
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems

    32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems

    The 32-inch Windows Interactive Board offers a versatile solution for factory visualization and event displays, bringing high-definition, interactive displays to industrial and commercial environments. With a 1920x1080 resolution and a 400cd/m² brightness, it ensures clear visibility even in bright settings. For factories, this system allows for real-time monitoring of production lines, machinery health, and workflow optimizations. The board’s large 698mm x 391.8mm display area can be used to display detailed schematics, flow charts, and interactive data visualizations that allow operators and managers to make informed decisions quickly. Its high contrast ratio and wide viewing angles make it suitable for use in control rooms or manufacturing floors where workers need to view critical data from various positions.

    LCD Panel ParametersScreen Size32 Inch

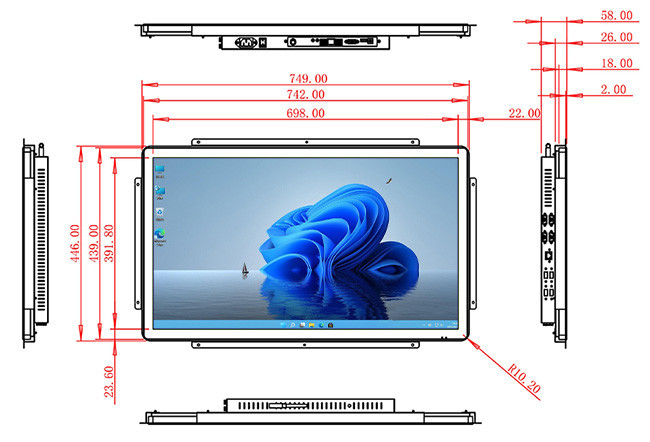

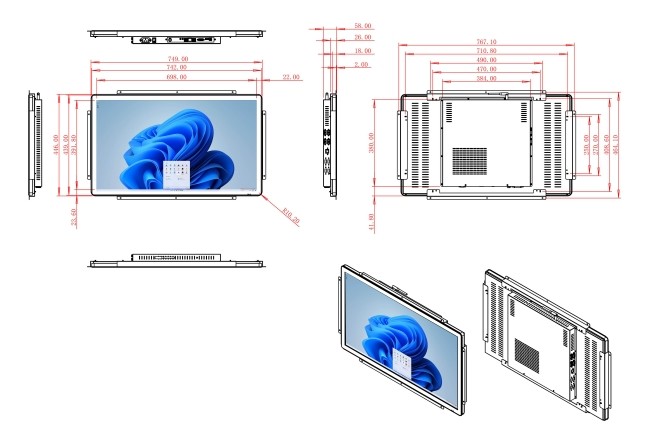

    Display Area698 mm.(Height) X 391.8(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color8 Bit + FRC Color 1.07G
    Brightness400cd/
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time8ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 60 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Package SizeDevice Dimensions749 X 446 X 58 mm.
    Net Weight13 Kilogram
    Package Size83 X 53 X 15Centimeter
    Gross Package Weight per Unit15 Kilogram

    In smart city dashboards and public event displays, the 32-inch interactive board serves as an essential tool for delivering dynamic content to large audiences. Its 1.07 billion colors and 1200:1 contrast ratio ensure vibrant, eye-catching displays for digital signage in urban spaces, shopping malls, airports, and transportation hubs. City planners can also use this system to monitor traffic flow, weather patterns, and public services, integrating live data to provide actionable insights in a highly visible format. With the ability to connect to networks and display real-time content, this board can also be used for smart city information systems, offering live data on public events, weather updates, and emergency alerts.


    32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems32-Inch Windows Interactive Board for Factory Visualization, Event Displays, Smart City Dashboards, and Educational Systems

    In education systems, the 32-inch interactive board enhances the classroom experience with its high-definition visuals and multi-touch capabilities. Ideal for interactive learning, it can display educational content, multimedia lessons, and collaborative projects. Whether it’s for e-learning environments, virtual classrooms, or traditional schools, the display supports an engaging way to present information. Teachers can use the system to display interactive lessons, showing complex subjects in an easy-to-understand, visual format. Its use of Wi-Fi and USB connectivity ensures that resources can be shared and accessed quickly, making it an ideal tool for distance learning, online education platforms, or in universities where students and educators need an effective and interactive method of content delivery.
