17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

Shenzhen ZXT LCD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions from wholesalers

    Buy cheap 17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions from wholesalers
    • Buy cheap 17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions from wholesalers
    • Buy cheap 17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions from wholesalers

    17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E170WAB
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

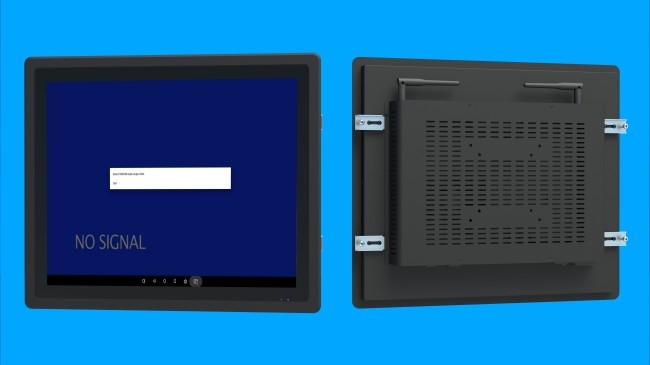

    17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

    17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

    The 17-inch integrated Android display is a perfect solution for industrial equipment where clarity and functionality are crucial for operational success. Whether in manufacturing plants, assembly lines, or machinery control rooms, this monitor offers clear, crisp visuals with a 1280x1024 resolution, ensuring that real-time data such as equipment performance, production status, and safety protocols are easily accessible at a glance. Its high contrast ratio (1200:1) ensures clear readability even in environments with fluctuating lighting conditions, while the wide viewing angles guarantee visibility from different positions. Equipped with Android-based software, it supports customizable interfaces and easy integration with industrial equipment, making it a versatile tool for managing complex processes and improving workflow efficiency.

    LCD Panel ParametersScreen Size17 Inch
    Display Area337.92 mm.(Height) X 270.34(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1280 X 1024
    Display Color16.7M , 72% NTSC
    Brightness250cd/m²
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time20ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 13.0
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2OTG USB2.0 x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃

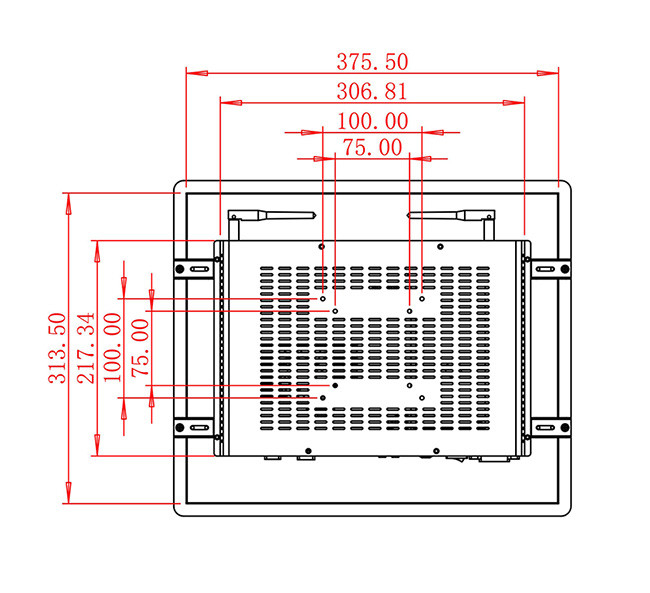

    Package SizeDevice Dimensions400.6 X 338.6 X 50 mm.
    Net Weight5.5 Kilogram
    Package Size48 X 39 X 15 Centimeter
    Gross Package Weight per Unit6 Kilogram

    Another important application of the 17-inch Android monitor is within security systems where reliability and precision are paramount. For security control rooms, surveillance stations, or smart security devices, this monitor is an excellent choice for displaying real-time footage from security cameras, access control systems, and incident alerts. Its responsive performance and high-resolution capabilities enable sharp, high-quality video and image viewing, even in multi-camera setups. The built-in Bluetooth and Ethernet connections provide seamless integration with networked devices, allowing security personnel to manage data from different locations efficiently. Additionally, its robust Android system supports remote configuration, making it easy to monitor and control security systems remotely, whether on-site or off-site.

    17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

    Beyond industrial and security uses, the 17-inch Android screen serves as a dynamic interface for public information systems and interactive kiosks. This monitor is a strong candidate for use in places like transportation terminals, malls, or conference centers, offering interactive wayfinding, visitor information, and real-time announcements. The high brightness level ensures that the screen remains visible even in well-lit or outdoor environments. Its Android operating system allows for intuitive software and content updates, which can be managed remotely across multiple units. With the integrated audio system, it can also deliver audio instructions or advertisements, enhancing the overall user experience in public-facing installations. The monitor’s versatility and adaptability make it ideal for a range of customer-facing applications, where ease of use and reliability are critical.
