    12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E121WAB
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals

    12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals

    The 12.1-inch Android display is a versatile and high-performance solution for medical panels and smart terminals in healthcare environments. With a high resolution of 1280 x 800 and a brightness of 400cd/m², this display ensures crystal-clear visibility for medical professionals operating in environments with varying lighting conditions. Whether used for patient monitoring, diagnostic imaging, or displaying real-time health data, this screen offers the necessary clarity and accuracy required for healthcare applications. The device's 16.7 million color display enables vibrant visuals, making it ideal for electronic medical records (EMR) systems, ensuring that doctors and nurses can interact with medical data effectively.

    LCD Panel ParametersScreen Size12.1 Inch
    Display Area245.76 mm.(Height) X 184.32(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution800 X 6001280 X 800
    Display Color16.7M16.7M
    Brightness350 cd/㎡400 cd/㎡
    Contrast Ratio1000 :11200 :1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)85°/85°/85°/85° (Type)(CR≥10)
    Response Time30ms25ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 13.0
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2OTG USB2.0 x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 15 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃

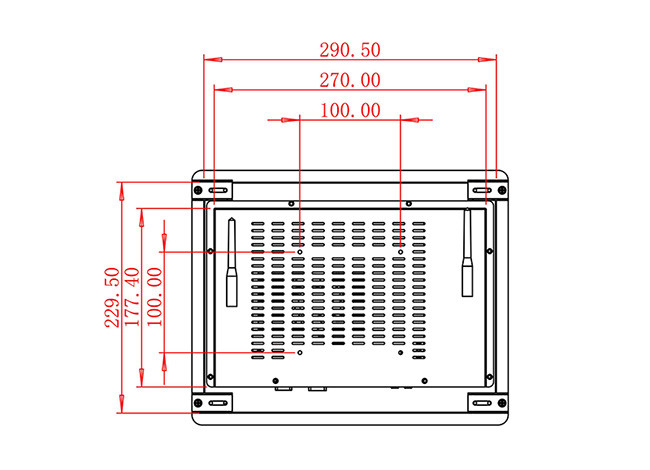

    Package SizeDevice Dimensions314.1 X 253.1 X 50mm.
    Net Weight3 Kilogram
    Package Size36.8 X 16.3 X 15Centimeter
    Gross Package Weight per Unit4 Kilogram

    In addition to medical devices, this 12.1-inch Android screen is perfect for smart terminals used in industries such as retail, education, and hospitality. Its touchscreen interface supports seamless user interaction, enabling fast access to key functionalities. In retail environments, it can be used as a point-of-sale (POS) terminal, providing an intuitive interface for processing transactions and displaying customer-facing content. For interactive kiosks, the screen can offer information on product listings, promotions, or even serve as a self-service check-in station in places like airports or hotels. The 2GB RAM and 32GB storage ensures that apps run smoothly, while Wi-Fi 6 and Bluetooth 5.0 connectivity enable fast communication with other devices, making it highly versatile for various business needs.


    12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals12.1-Inch Embedded Android Screen for Medical Panels and Smart Terminals

    Beyond its use in healthcare and business sectors, this 12.1-inch Android display is highly suitable for industrial automation applications. It can be integrated into control panels, manufacturing equipment, and automated systems to provide operators with a reliable and responsive interface. The high contrast ratio and wide viewing angles make it ideal for use in environments where operators need to monitor and control machinery remotely. Additionally, with its Ethernet and Bluetooth capabilities, it supports remote diagnostics and troubleshooting, ensuring that machines operate smoothly without the need for physical intervention. This embedded display offers a practical and efficient solution for monitoring and managing operations in diverse industrial sectors.
