15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

Shenzhen ZXT LCD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems from wholesalers

    Buy cheap 15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems from wholesalers
    • Buy cheap 15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems from wholesalers
    • Buy cheap 15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems from wholesalers

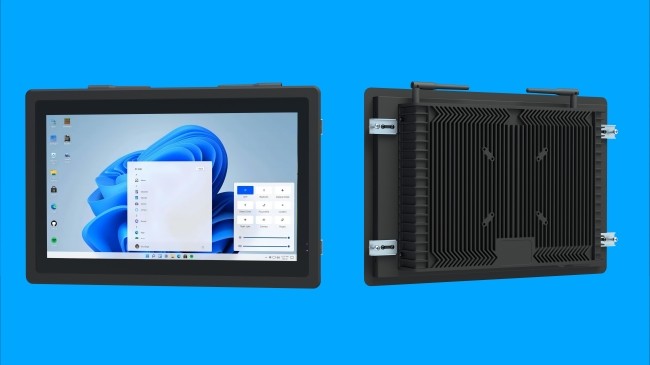

    15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E156WPBWFS
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

    15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

    The 15.6-inch Windows display is an ideal solution for factory dashboards and industrial control systems, providing operators with the tools to monitor and manage production processes in real-time. Featuring a high-definition resolution of 1920x1080 and a 16:9 aspect ratio, it ensures that detailed data and real-time metrics are clearly visible, whether displaying production line statistics, machine performance, or quality control data. With integrated Wi-Fi, it can connect to local networks for seamless communication between workstations and the central control system, ensuring that updates are continuously relayed. This slim monitor can be mounted on walls or placed on workbenches, offering flexibility in positioning without occupying much space, making it perfect for factories and warehouses with limited room.

    LCD Panel ParametersScreen Size15.6 Inch
    Display Area344.16 mm.(Height) X 193.59(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7M , 72% NTSC
    Brightness250cd/m²
    Contrast Ratio700 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ω
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0℃ ~ 50℃
    Storage TemperatureBelow 10℃ ~ +60℃
    Package SizeDevice Dimensions403.9 X 263.9X 56.7mm.
    Net Weight5 Kilogram
    Package Size47 X 33 X 17Centimeter
    Gross Package Weight per Unit5.5 Kilogram

    In security systems, the 15.6-inch monitor serves as an excellent tool for surveillance operations, displaying live video feeds from security cameras with great clarity. Its high contrast ratio and wide viewing angles ensure that security teams can easily monitor feeds from various camera angles, whether from control rooms or on-site installations. The display's stereo audio system can be used for alert sounds, further enhancing the functionality of the security system by adding auditory cues to visual data. This display is ideal for centralized monitoring stations or as part of a remote security interface, enabling real-time responses to any disturbances, ensuring a swift reaction to any security threats.


    15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

    15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

    Additionally, the 15.6-inch display is well-suited for use in kiosks and customer-facing applications within industrial settings. Whether used as an interactive information station, time clock, or access control terminal, its compact design and touchscreen capabilities provide users with a seamless experience. The Intel i5 processors and high RAM capacity ensure that the monitor can run sophisticated applications like scheduling software or custom interfaces for access control systems. Moreover, its robust construction and long lifespan make it a reliable option for environments with high operational demands, such as manufacturing floors or logistics hubs, where durability and consistent performance are key.
