Brand Name : | ZXTLCD |
Model Number : | ZXTLCD-E156WASWFS |
Certification : | CE/Rohs/FCC |
Price : | negotiable |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 2000 pcs per month |
Delivery Time : | 3-5 working days |

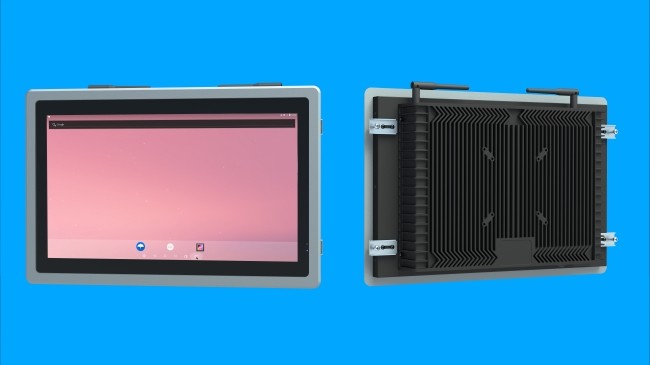

The 15.6-inch Android display is a robust and efficient solution for industrial dashboards, offering real-time monitoring and control capabilities for factories and production facilities. With a Full HD resolution and high brightness, it enables operators to effectively view essential production data, such as machine status, system alerts, and performance metrics. The device is designed to integrate seamlessly with IoT-based factory management systems using its Ethernet and Wi-Fi 6 connectivity, allowing for remote monitoring and control from anywhere. Additionally, the Android operating system provides the flexibility to run custom applications tailored to the factory's specific needs, making this display perfect for managing production lines, controlling machinery, and even monitoring energy consumption in large-scale industrial operations.
LCD Panel Parameters | Screen Size | 15.6 Inch | ||
Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 700 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 30ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ω | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 11.0 | ||
Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | USB2.0 x 2 | ||
HDMI IN x 1 | ||||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

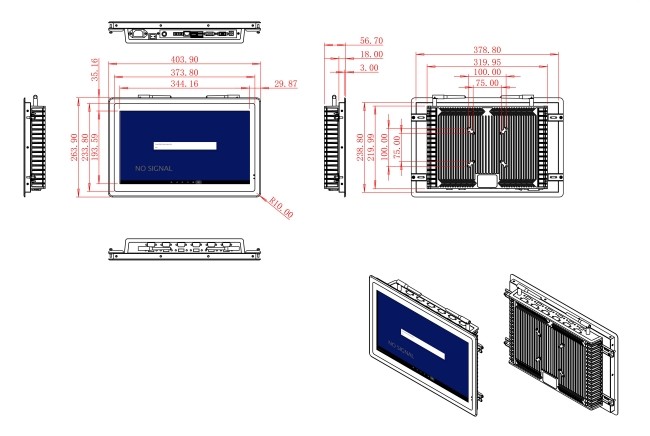

Package Size | Device Dimensions | 403.9 X 263.9X 56.7 mm. | ||
Net Weight | 5 Kilogram | |||
Package Size | 47 X 33 X 17 Centimeter | |||
Gross Package Weight per Unit | 5.5 Kilogram |
For security solutions, the 15.6-inch Android display offers a reliable and efficient interface for managing
surveillance systems, from monitoring CCTV feeds to controlling access points in secured areas. The screen’s high contrast ratio and wide viewing angles ensure that every detail is clear and visible, even in low-light
conditions or across multiple monitoring stations. Security
personnel can easily interact with the system through its touch interface, making adjustments to camera angles, accessing archived footage,
or setting up alerts. The USB, HDMI, and Ethernet ports enable easy integration with other security equipment, such
as DVRs or NVRs, providing a unified, all-in-one solution for
large-scale surveillance systems in places like corporate offices, public buildings, or warehouses.
In interactive kiosks or point-of-sale (POS) systems, the 15.6-inch display shines as a customer-facing interface in retail environments. The screen’s compact design and responsive touch technology make it perfect for providing customers with an engaging and
intuitive user experience, whether they are ordering food, checking
out at a store, or using a self-service terminal. The display’s Android OS allows for easy customization of the interface to suit the brand's
style and functionality, and its low power consumption ensures cost-effective, long-term use. With high-definition graphics and clear sound output from the built-in stereo speakers, it’s an ideal choice for
dynamic and interactive customer experiences in shopping malls, restaurants, or ticketing systems at entertainment venues like cinemas and theme parks.
![]() |
