    15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E156BACT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces

    15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces

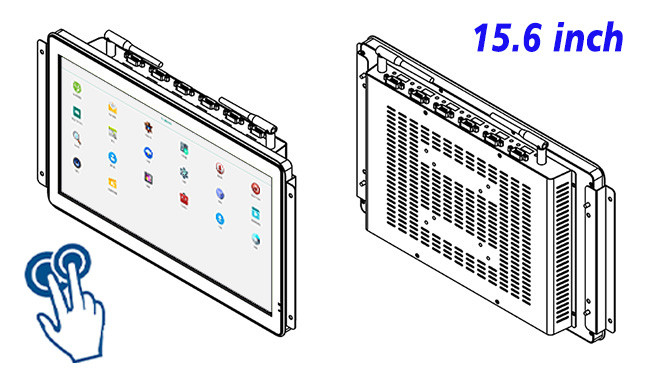

    The 15.6-inch Android touch vision terminal is an essential tool for industrial automation systems, where precision and reliability are key. Featuring a high-definition 1920x1080 resolution, this terminal allows operators to monitor complex systems with ease. Whether used for machine control panels, robotic systems, or production line monitoring, this terminal ensures smooth interaction with its 10-point capacitive touchscreen. The system's rugged design and high brightness of 250cd/m² make it perfect for industrial environments with varying light conditions. The Android 10.0 or 11.0 operating system ensures seamless connectivity with industry-standard software, enabling real-time data visualization, diagnostics, and control. Additionally, with its long lifespan and resilient design, the device can endure continuous operation in harsh environments, ensuring efficiency and uptime.

    LCD Panel ParametersScreen Size15.6 Inch
    Display Area344.16 mm.(Height) X 193.59(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7M , 72% NTSC
    Brightness250cd/
    Contrast Ratio700 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ω
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 11.0
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2USB2.0 x 2
    HDMI IN x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60

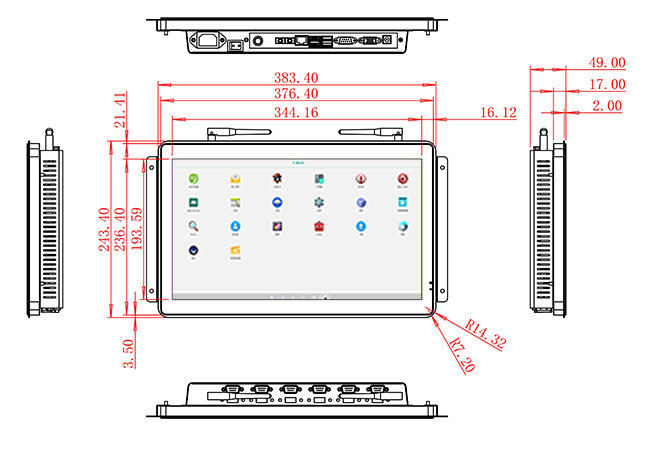

    Package SizeDevice Dimensions383.4 X 243.4X 49mm.
    Net Weight5 Kilogram
    Package Size45 X 32 X 15Centimeter
    Gross Package Weight per Unit5.5 Kilogram

    In the smart retail sector, the 15.6-inch interactive terminal plays a pivotal role in enhancing customer experience and streamlining business operations. Retailers can deploy the terminal as part of self-service kiosks, digital price tags, or interactive displays in stores. With its capacitive touchscreen and precise touch accuracy, customers can easily browse products, check out, or access promotions. Its Wi-Fi and Ethernet connectivity options support smooth integration with existing systems for real-time stock updates and secure transactions. The terminal's high contrast ratio ensures that the display is clear and easy to read, even under bright store lighting. The Android system offers the flexibility to run various applications tailored to smart retail systems, enabling a seamless shopping experience that keeps customers engaged and businesses efficient.


    15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces15.6-Inch Android Touch Vision Terminal for Industrial Automation, Smart Retail Systems, Energy Monitoring, and Educational Interfaces

    The 15.6-inch Android terminal is also ideal for energy monitoring and management applications. With its bright, high-resolution screen and touch interface, it becomes an invaluable tool for smart energy meters, building management systems, and renewable energy monitoring platforms. The terminal can display real-time data on energy consumption, solar panel performance, or grid status, enabling efficient energy management and decision-making. Thanks to its Android platform, it can integrate with cloud-based applications and IoT devices, allowing users to access detailed insights and analytics remotely. Additionally, the terminal's rugged, durable build ensures it can withstand varying environmental conditions, making it a reliable solution for both indoor and outdoor energy monitoring installations. Whether used in industrial plants or smart homes, this device provides a robust and intuitive interface for managing energy systems.
