15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management

Shenzhen ZXT LCD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management from wholesalers

    Buy cheap 15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management from wholesalers
    • Buy cheap 15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management from wholesalers
    • Buy cheap 15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management from wholesalers

    15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E150BACT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management

    15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management

    The 15-inch Android control console offers a versatile solution for security panels in commercial and industrial environments. With its high-definition resolution of 1024x768 and 300cd/m² brightness, this unit ensures that security personnel can effectively monitor surveillance feeds, track alarm systems, and manage access control systems. Its 10-point capacitive touchscreen enables quick, responsive interactions, making it easy for users to adjust settings, view camera feeds, or perform system diagnostics. The projected capacitive touchscreen is reinforced with Morse glass and boasts excellent touch accuracy and durability, which makes it suitable for continuous use in high-demand settings. Moreover, the Android 13.0 system facilitates seamless integration with modern security software, allowing for real-time alerts and secure communication across networks.

    LCD Panel ParametersScreen Size15 Inch
    Display Area302.9 mm.(Height) X 227.1(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1024 X 768
    Display Color262K/16.2M , 72% NTSC
    Brightness300cd/
    Contrast Ratio1500 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time15ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 13.0
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2OTG USB2.0 x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 25 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60

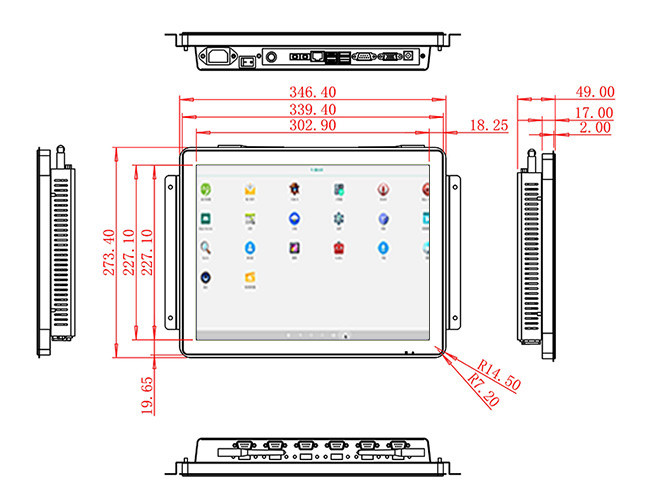

    Package SizeDevice Dimensions346.4 X 273.4X 49mm.
    Net Weight5 Kilogram
    Package Size41 X 35 X 15Centimeter
    Gross Package Weight per Unit5.5 Kilogram

    In public service stations, this 15-inch Android control terminal becomes a crucial interface for information display, helping customers access services and navigate public facilities efficiently. Its high-contrast ratio and wide viewing angles allow information to be visible to multiple people at once, ensuring accessibility in high-traffic areas. With its rugged construction and resistant-to-scratch screen, the device is built to withstand heavy usage in public spaces. Whether it’s for information kiosks, wayfinding systems, or ticketing booths, this terminal offers customizable content display—ranging from public announcements to service instructions—on the high-definition screen. The addition of Wi-Fi and Ethernet connectivity ensures smooth communication between the terminal and public service networks, supporting efficient service delivery and seamless customer interaction.


    15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management

    This 15-inch Android control console is also an ideal choice for digital signage applications. Whether in retail, hospitality, or corporate environments, its vivid display and responsive touch interface allow for dynamic content presentation and customer engagement. The device can be used as a digital billboard to display advertisements, promotions, or schedules, while its built-in stereo speakers enable audio integration for a multi-sensory experience. Thanks to its Android-based operating system, users can upload and manage content remotely via cloud-based software, which can be scheduled or updated in real-time. Additionally, the durability and power efficiency of this terminal make it perfect for outdoor installations, such as at bus stops or train stations, where constant exposure to environmental factors and high foot traffic are common. This makes it an essential tool for advertisers and public communicators aiming to engage audiences in innovative, impactful ways.


    Quality 15-Inch Android Control Console for Security Panels, Public Service Stations, Digital Signage, and Facility Management for sale
