    10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E101BACT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions

    10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions

    The 10.1-inch Android interface is a powerful and compact solution designed for integration into smart vending machines. Its high brightness of 400cd/m² ensures visibility even in low-light environments, while the capacitive touchscreen enables quick and accurate interaction, essential for a seamless user experience. With its 10-point touch capability, users can easily select products, make payments, or navigate through available options, enhancing the efficiency of self-service machines. Equipped with Android 10.0 or Android 13.0, the screen supports intuitive apps that can handle real-time inventory management, promotional displays, and customer interactions. This makes it an ideal choice for modern vending solutions in public spaces like malls, offices, and transport terminals, where ease of use and durability are paramount.

    LCD Panel ParametersScreen Size10.1 Inch
    Display Area216.58 mm.(Height) X 135.36(Width)mm.
    Aspect Ratio16 : 916 : 10
    LCD Typea-Si TFT-LCD Monitora-Si TFT-LCD Monitor
    Maximum Resolution1280 X 8001920 X 1200
    Display Color16.7M, 50% NTSC16.2M , 50% NTSC
    Brightness400cd/1000cd/
    Contrast Ratio900 : 11000 :1
    Viewing Angle (Up/Down/Left/Right)85°/85°/85°/85° (Type)(CR≥10)80°/80°/80°/80° (Type)(CR≥10)
    Response Time30ms30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternCapacitive Touchscreen Capacitive Projected
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 13.0
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2OTG USB2.0 x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 15 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60

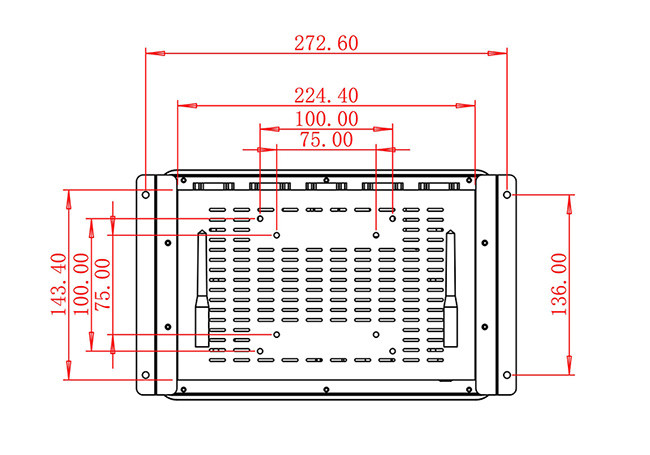

    Package SizeDevice Dimensions247.4 X 166.4 X 36 mm.
    Net Weight1.5 Kilogram
    Package Size30 X 24 X 10Centimeter
    Gross Package Weight per Unit3 Kilogram

    In healthcare environments, the 10.1-inch Android interface proves invaluable as a patient terminal for accessing medical records, appointment schedules, and providing information. Its clear display and robust touch interface allow for seamless navigation by patients or medical staff. The high contrast ratio and wide viewing angle ensure clear visibility in diverse conditions, while its long lifespan of up to 60,000 hours ensures reliability in high-traffic areas like hospitals or clinics. The system's Ethernet and Wi-Fi connectivity options allow it to integrate with healthcare management systems for real-time data access, making it ideal for electronic check-ins, patient directories, and health kiosks in waiting areas, enhancing patient experience and streamlining workflow in busy medical settings.


    10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions10.1-Inch Android Embedded Interface for Smart Vending Machines, Healthcare Terminals, Kiosk Systems, and Retail Solutions

    Additionally, the 10.1-inch Android display is highly effective in retail kiosks and interactive information terminals. With its fast response time and precise touch accuracy, it supports features such as interactive product catalogs, store directories, and self-checkout systems in retail environments. Its compact size allows for easy placement in retail stores, shopping malls, and exhibition centers, where space may be limited but high functionality is required. The sturdy design and reinforced glass make it resilient to daily wear and tear, ensuring it performs well in high-traffic locations. Coupled with Android 10.0 or 13.0, retailers can manage dynamic content remotely, offering up-to-date promotions and customer services, and enabling a modern and efficient retail experience.
