    13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E133BCT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems

    13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems


    LCD Panel ParametersScreen Size13.3 Inch
    Display Area293.76 mm.(Height) X 165.24(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color262K, 45% NTSC
    Brightness220cd/
    Contrast Ratio800 : 1
    Viewing Angle (Up/Down/Left/Right)85°/85°/85°/85° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio Parameters
    (External Speaker Option)
    Audio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Onboard InterfaceHDMI Input1
    VGA Input1
    DVI Input1
    USB Type B or any desired USB Type1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 25 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    AccessoriesPower Cord Length1.5m
    HDMI Cable Length2m
    USB-A to USB-B Cable Length1.5m
    Stereo Speaker Size with Connector99*45*20mm
    Stereo Speaker Length1.5m

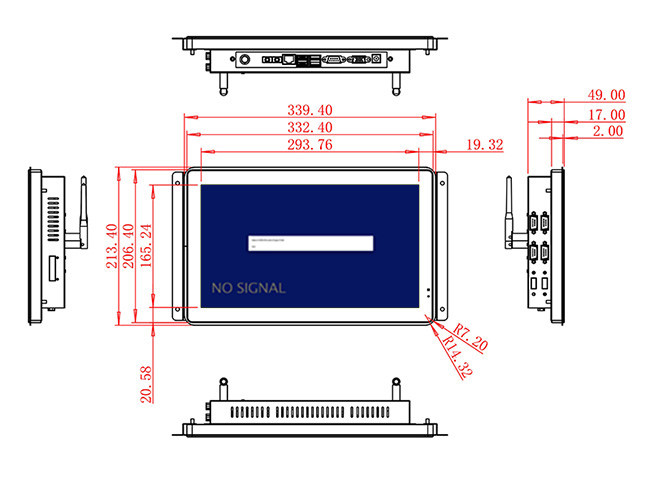

    Package SizeDevice Dimensions339.4 X 213.4 X 49mm.
    Net Weight3 Kilogram
    Package Size40 X 28 X 15Centimeter
    Gross Package Weight per Unit4 Kilogram

    13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems13.3-Inch Embedded Display for Energy Monitoring, Factory Automation, Public Information Terminals, and Security Control Systems
