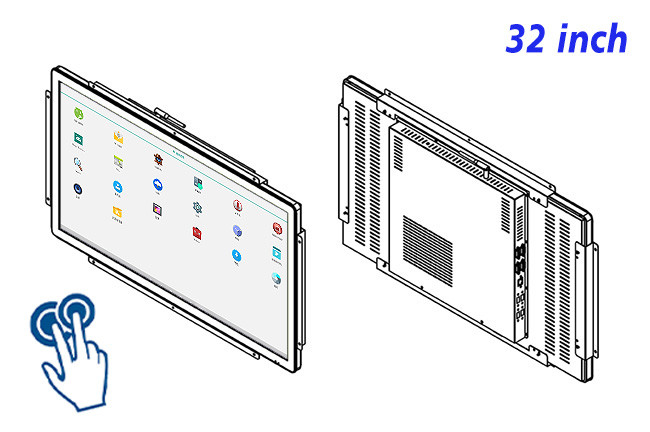

    32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E320BACT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring

    32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring

    The 32-inch Android touch vision platform is a powerful solution for factory dashboards, offering real-time data monitoring and control across industrial environments. With its vibrant 1920 x 1080 resolution, the platform provides clear visibility of key metrics such as production output, machine performance, and system status. The large touch interface allows operators to quickly interact with equipment, adjust settings, and respond to operational challenges. Its rugged construction, with a reinforced glass cover, ensures durability in the harsh conditions typical of factory floors, while its high brightness ensures readability even in environments with high ambient light. This platform is integral to modernizing factory operations, enhancing productivity, and improving safety with its intuitive and responsive touch controls.

    LCD Panel ParametersScreen Size32 Inch
    Display Area698 mm.(Height) X 391.8(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color8 Bit + FRC Color 1.07G
    Brightness400cd/
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time8ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassPhysical toughened Morse magnitude 7 explosion-proof
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Configuration PCB Android Built-in
    (Choose one of two)
    CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 11.0
    Ethernet1 x RJ45, Ethernet 1,000 Mbps1 x RJ45, Ethernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2USB2.0 x 2
    HDMI IN x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 60 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Package SizeDevice Dimensions749 X 446 X 58 mm.
    Net Weight13 Kilogram
    Package Size83 X 53 X 15Centimeter
    Gross Package Weight per Unit15 Kilogram

    In smart city infrastructure, this 32-inch platform becomes a central hub for managing and monitoring urban systems. Whether used for traffic control, environmental monitoring, or public safety systems, the large touchscreen enables seamless interaction with various city management tools. Operators can access real-time traffic data, environmental sensor readings, and CCTV footage, all displayed in high clarity. Its advanced touch response allows users to switch between applications, zoom in on critical data points, or adjust system parameters with ease. In addition, the platform supports wireless connectivity, ensuring remote monitoring and adjustments are possible, which is essential for the fast-paced demands of modern cities. This flexibility and scalability make it an essential tool for any urban management system aiming to stay ahead in an increasingly connected world.

    32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring

    32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring32-Inch Android Touch Vision Platform for Factory Dashboards, Smart City Infrastructure, Retail Interfaces, and Industrial Monitoring

    Retail interfaces benefit greatly from the 32-inch touchscreen platform by enhancing customer engagement and providing intuitive product displays. In retail spaces, this platform can be used for interactive kiosks, digital signage, or self-checkout systems, offering customers a seamless, engaging shopping experience. With its high resolution and vibrant color display, it ensures that product information, promotions, and advertisements are shown in crisp detail, capturing customer attention. The interactive touch interface allows for easy browsing of product catalogs, making it a perfect fit for modern retail environments that aim to offer both convenience and a high-tech shopping experience. Retailers can also use the platform to manage inventory or display dynamic pricing in real-time, making it a versatile tool that drives both customer satisfaction and operational efficiency.
