    21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E215BACT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs

    21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs

    The 21.5-inch Android interactive platform offers a dynamic solution for industrial equipment control, where precise and efficient monitoring is crucial. Featuring a high-definition resolution of 1920 x 1080, this screen is designed to display critical operational data with clarity and ease. Its capacitive touchscreen supports up to 10 touch points, allowing operators to interact directly with machinery controls, adjust parameters, and access real-time analytics. With its robust build, including explosion-proof glass, it can withstand harsh environments such as factory floors and warehouses. The integration of Android OS offers flexibility in customizing applications for different industrial needs, making it a versatile addition to any equipment management system.

    LCD Panel ParametersScreen Size21.5 Inch
    Display Area476.5 mm (Height) X 268 mm (Width)
    Aspect Ratio16 : 9
    LCD TypeTFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7m
    Brightness250cd/
    Contrast Ratio3000 : 1
    Viewing Angle (Up/Down/Left/Right)89/89/89/89 (Type)(CR≥10)
    Response Time6.5ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternCapacitive Touchscreen Capacitive Projected
    Touch Points10 Points
    Cover GlassPhysical toughened Morse magnitude 7 explosion-proof
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Configuration PCB Android Built-in
    (Choose one of two)
    CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 11.0
    Ethernet1 x RJ45, Ethernet 1,000 Mbps1 x RJ45, Ethernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2USB2.0 x 2
    HDMI IN x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 45 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60

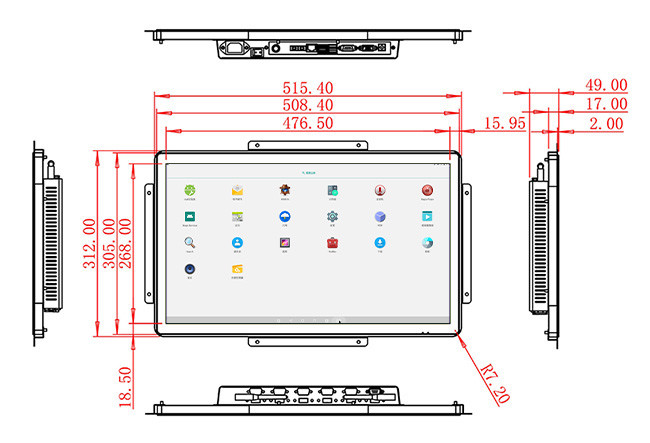

    Package SizeDevice Dimensions515.4 X 312 X 49 mm.
    Net Weight7 Kilogram
    Package Size60 X 40 X 15Centimeter
    Gross Package Weight per Unit7.5 Kilogram

    In the exhibition display sector, the 21.5-inch interactive platform serves as an engaging centerpiece for trade shows and museums. With its vibrant 16.7 million color display and wide viewing angles, it captures visitors' attention, presenting multimedia content such as videos, images, and interactive presentations. Its durable, touch-sensitive surface enhances user interaction, allowing attendees to explore exhibits in a hands-on manner. The Android-based interface enables easy content updates and the ability to host a variety of interactive applications tailored to each exhibit. Whether used for digital signage, wayfinding kiosks, or interactive learning stations, this platform is a reliable tool for creating a captivating, immersive experience in public spaces.


    21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs

    21.5-Inch Android Interactive Platform for Industrial Equipment, Exhibition Displays, Corporate Dashboards, and Public Information Hubs

    This 21.5-inch interactive platform is also a perfect solution for corporate dashboards, providing businesses with a centralized hub for monitoring key metrics and real-time performance. Whether installed in a command center, meeting room, or shared workspace, it delivers crucial data in an easy-to-read, highly interactive format. The touchscreen functionality enables quick adjustments and in-depth exploration of charts, graphs, and reports, helping teams make informed decisions at a glance. Additionally, its ability to connect to various networks via Wi-Fi and Ethernet ensures seamless integration with company systems. From finance departments to operational teams, the versatility and clarity of this platform help organizations keep a pulse on their performance and operations in real-time.
