    18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-E185BACT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

    18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

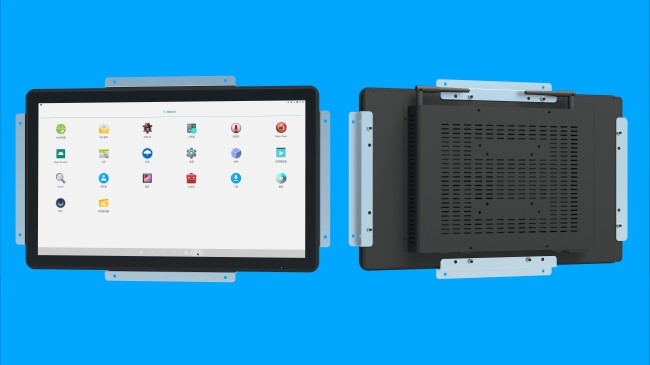

    The 18.5-inch Android Touchscreen Device is a versatile solution designed to seamlessly integrate into a variety of operational environments, ranging from traffic management and warehouse dashboards to smart city displays and logistics systems. Equipped with an impressive 1920 x 1080 resolution, it offers clear, crisp visuals that enhance the accuracy of data visualization. The durable projected capacitive touchscreen supports up to 10 touch points, ensuring an intuitive, responsive experience. Whether used in public transportation hubs for managing traffic flow or as part of a sophisticated warehouse management system, its user-friendly interface allows for real-time control and efficient monitoring of key processes. The robust design, including explosion-proof glass and a wide operating temperature range, makes this device ideal for environments that demand high reliability and durability.

    LCD Panel ParametersScreen Size18.5 Inch
    Display Area409.8 mm.(Height) X 230.4(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7m , 72% NTSC
    Brightness250cd/
    Contrast Ratio1200 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time14ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassPhysical toughened Morse magnitude 7 explosion-proof
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
    GPUMali-T764Mali-G52
    RAM2GB4GB
    ROM32GB32GB
    Android SystemAndroid 10.0Android 11
    Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
    Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
    Bluetooth4.25
    InterfaceUSB2.0 x 2OTG USB2.0 x 1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Package SizeDevice Dimensions450.4 X 274.4 X 49mm
    Net Weight6.5 Kilogram
    Package Size53 X 35 X 15Centimeter
    Gross Package Weight per Unit7 Kilogram

    In the realm of smart city management, this 18.5-inch device serves as a dynamic information hub. It can be used for digital signage in public spaces, displaying traffic information, weather updates, and emergency alerts in real-time. Its high brightness (250 cd/m²) ensures visibility even in bright outdoor environments, while its wide viewing angles ensure that messages are clearly seen from various perspectives. The integration of Bluetooth and Wi-Fi 6 further enhances its connectivity, allowing for seamless communication with other devices in the network, such as sensors, cameras, and security systems. These capabilities make it an excellent choice for interactive kiosks and public service stations, providing citizens with access to vital information at their fingertips.

    18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

    18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

    18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

    Warehouse and logistics systems benefit greatly from the advanced capabilities of this device, which can be used as a central control panel for monitoring inventory, tracking shipments, and managing warehouse operations. With its powerful quad-core processor and ample memory (up to 4GB RAM and 32GB ROM), it can handle complex data processing and multitasking without lag. The touchscreen interface allows warehouse managers to interact with data in real time, simplifying the management of logistics operations. The device's ability to operate in challenging environmental conditions, such as high humidity or extreme temperatures, makes it especially suitable for large-scale operations that require constant uptime and accuracy. Whether it's displayed on a logistics dashboard or integrated into a vehicle fleet management system, this device enhances operational efficiency and provides users with critical insights in a clear, accessible format.
