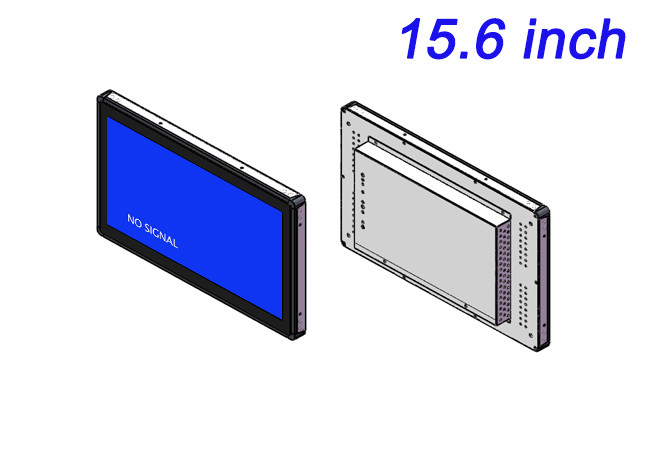

    15.6-Inch Embedded Monitor for Kiosks, Retail Displays, Factory Dashboards, and Payment Systems

    Ask Lasest Price
    Model Number : ZXTLCD-RM156SM
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    Brand Name : ZXTLCD
    • Product Details
    • Company Profile

    15.6-Inch Embedded Monitor for Kiosks, Retail Displays, Factory Dashboards, and Payment Systems

    15.6-Inch Embedded Monitor for Kiosks, Retail Displays, Factory Dashboards, and Payment Systems

    15.6-inch Embedded Industrial Control All-in-One Machine: A Reliable Choice for CNC Equipment Display Panels


    In the modern manufacturing industry, CNC equipment has become an important tool for improving production efficiency and product quality. As one of the core components of CNC equipment, the performance of the display panel directly affects the convenience of operation and the accuracy of data. The 15.6-inch embedded industrial control all-in-one machine, with its stable display performance and robust design, has become the ideal solution for display panels of CNC equipment.

    15.6-Inch Embedded Monitor for Kiosks, Retail Displays, Factory Dashboards, and Payment Systems

    15.6-inch Embedded Industrial Control All-in-One Machine — Precise Display of CNC Information

    During the operation of CNC equipment, it is crucial to clearly and accurately display various data and status information. The 15.6-inch embedded industrial control all-in-one machine, with its high-resolution LCD screen, can clearly display the working parameters, alarm information, and other necessary operational instructions of the equipment. This all-in-one machine features an embedded installation design that not only saves space but also integrates closely with the equipment casing, providing better protection performance, suitable for various industrial environments.

    LCD Panel ParametersScreen Size15.6 Inch
    Display Area344.2 mm.(Height) X 193.50(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color16.7M , 72% NTSC
    Brightness250cd/
    Contrast Ratio700 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    Audio Parameters
    (External Speaker Option)
    Audio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ω
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Onboard InterfaceHDMI Input1
    VGA Input1
    DVI Input1
    USB Type B or any desired USB Type1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    AccessoriesPower Cord Length1.5m
    HDMI Cable Length2m
    USB-A to USB-B Cable Length1.5m
    Stereo Speaker Size with Connector99*45*20mm
    Stereo Speaker Length1.5m
    Package SizeDevice Dimensions389 X 249 X 51.7mm.
    Net Weight5 Kilogram
    Package Size44.2 X 30 X 10.5Centimeter
    Gross Package Weight per Unit5.5 Kilogram

    15.6-Inch Embedded Monitor for Kiosks, Retail Displays, Factory Dashboards, and Payment Systems

    Data Visualization and Efficient Management — 15.6-inch Industrial Control Data Display Panel

    For CNC equipment, the visual display of data helps operators promptly grasp the operating conditions of the equipment and make corresponding adjustments. The 15.6-inch industrial control data display panel not only updates various indicators of the equipment in real-time but also presents the data intuitively through charts and other forms, making it easy to understand. In addition, the panel supports multiple data interfaces, facilitating data exchange with other control systems or management systems, further enhancing the efficiency of equipment management.

    15.6-Inch Embedded Monitor for Kiosks, Retail Displays, Factory Dashboards, and Payment Systems

    The 15.6-inch embedded industrial control all-in-one machine, with its outstanding display effect and reliable performance, has become the preferred solution among display panels for CNC equipment. Whether for improving production efficiency or ensuring operational safety, this product demonstrates its exceptional value in the field of industrial automation.
