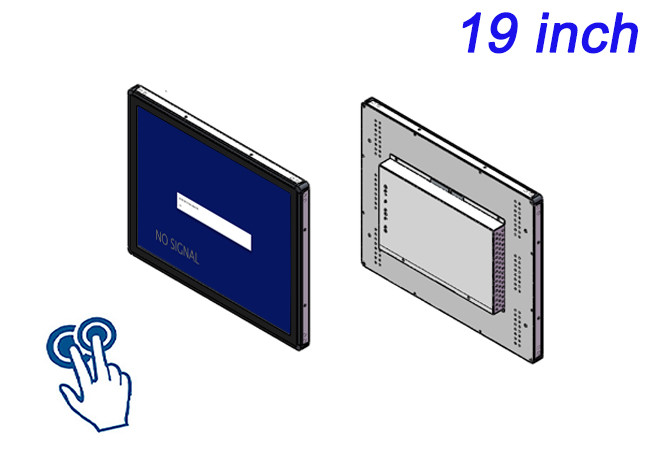

    19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

    Ask Lasest Price
    Model Number : ZXTLCD-RM190SMT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    Brand Name : ZXTLCD
    • Product Details
    • Company Profile

    19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

    19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

    19-inch integrated workstation embedded: An intelligent terminal for assembly line manufacturing management.


    In the modern manufacturing industry, efficient assembly line management is crucial for improving production efficiency. The 19-inch integrated workstation embedded, with its integrated design and high performance, has become an important component of assembly line manufacturing management equipment.

    19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

    LCD Panel ParametersScreen Size19 Inch
    Display Area375.2 mm.(Height) X 299.2(Width)mm.
    Aspect Ratio4 : 3
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1280 X 1024
    Display Color16.7m , 73% NTSC
    Brightness250cd/
    Contrast Ratio1000 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time14ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassPhysical toughened Morse magnitude 7 explosion-proof
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio Parameters
    (External Speaker Option)
    Audio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Onboard InterfaceHDMI Input1
    VGA Input1
    DVI Input1
    USB Type B or any desired USB Type1
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 30 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    AccessoriesPower Cord Length1.5m
    HDMI Cable Length2m
    USB-A to USB-B Cable Length1.5m
    Stereo Speaker Size with Connector99*45*20mm
    Stereo Speaker Length1.5m
    Package SizeDevice Dimensions422 X 346 X 51.7mm.
    Net Weight6.5 Kilogram
    Package Size47.4 X 40.6 X 10.1Centimeter
    Gross Package Weight per Unit7 Kilogram

    19-inch integrated workstation embedded: Precise monitoring and efficient operation

    In the control of assembly line manufacturing, the 19-inch integrated workstation embedded, with its high-resolution display and intuitive user interface, provides operators with clear data presentation and convenient control methods. Whether it's production progress, equipment status, or material tracking, this integrated machine can present key information in real-time, helping operators respond quickly and improve production efficiency. Its compact design and embedded installation method allow the device to be seamlessly integrated into the production line, saving space while ensuring the user interface is clearly visible.

    19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

    19-inch All-in-One Computer: Stable Operation and Intelligent Management

    The 19-inch all-in-one computer not only features excellent display performance, but its robust and durable design is also suitable for long-term stable operation in industrial environments. This all-in-one machine adopts a fully enclosed structure, with dustproof and waterproof functions, effectively resisting dust and moisture in the workshop, thereby extending the equipment's lifespan. Its built-in high-performance processor and large storage capacity support multitasking and big data processing, ensuring smooth system operation. In addition, the intelligent management platform based on an embedded system supports remote monitoring and maintenance, facilitating technicians in system updates and troubleshooting, thereby enhancing management efficiency.

    19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

    The 19-inch integrated workstation, with its outstanding performance and reliable design, has become the ideal choice for managing assembly line manufacturing. Whether it is to improve production efficiency or optimize equipment management, this all-in-one machine provides strong support, helping enterprises achieve intelligent manufacturing.
