23.1 inch Shelf edge lcd display stretched bar ultra wide screen
for supermarket advertisement
Supermarkets are full of a whole variety of different products, and
you’ll also notice that, as time goes by, prices are constantly
changing, deals are being offered, and various promotions also
included.
Years ago, to make customers aware of the offers, promotions, and
prices of their products, they would use posters, signs, and labels
on shelves. Well, as technology is constantly evolving, more and
more supermarkets are now using LCD display bars for advertisement
purposes, and the results speak for themselves.
| The specification |
| Model No | Product model | ZXTLCD-BAR231BHO |
| LCD Screen Panel | Screen size | 23.1" LCD Panel |
| Active display area | 585.6(H) X 48.19(V)mm |
| Resolution | 1920(V) X 158(H) |
| Brightness | 500cd/m2 |
| Contrast ratio | 3000:1 |
| Display color | 16.7M |
| Backlight type | WLED |
| Viewing angles | 178°(H) X 178°(V) |
| Response time | 6ms |
| Lifespan | 30000 hours |
| Main board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
| RAM | 1G DDR3(1 G/2G for optional ) |
| ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) |
| Memory extension | TF Card extension with the highest support for 64GB |
| System | Android 8.1 |
| Internet | Support 2.4G WIFI connection |
| RTC real time clock | Support timing on / off function |
| Interfaces | 1xTF card slot |
| 1*micro USB(OTG) |
| 1*Type-c(DC 12V input,Need to match with our company's special
adapter for power supply) |
| External function optional | 4G module |
| 8Ω1WX1 speaker |
| Support special requirements customization |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤24W |
| Product size | 599(H)X62(V)X16.2(D)mm |
| Installation | wall-mounted |
| Apperance material | Metal shell |
| Net weight | ≤0.7KG |
| Surface treatment | Black metal paint |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% |
| Atmospheric Pressure:86kPa～104kPa |
| Working Environment | Temperature:0℃～45℃ |
| Humidity:10%～85% |
| Atmospheric Pressure:86KPa～104KPa |
| Packing list | Bar lcd display | 1pcs |
| OTG Cable | 1Pcs(OTG cable,micro USB to USB 2.0) |
| Adapter | 1Pcs (12V, 2A) |
| Support special requirements customization |
Features:
1, Supports that the advertising players in the same group can be
played synchronously and the synchronization interval is less than
800ms
2, Support remote setting of advertising player properties, control
of advertising player volume, rotation angle, time zone, etc.
3, Support real-time management and release on mobile phone, iPad
and PC Support remote monitoring of the network status, system
status and hardware status of the advertising player, and monitor
the content of the advertising player
4, Support the needs of multiple forms of rolling subtitles and
bullet screens, the font, size and content of subtitles and bullet
screens can be edited.

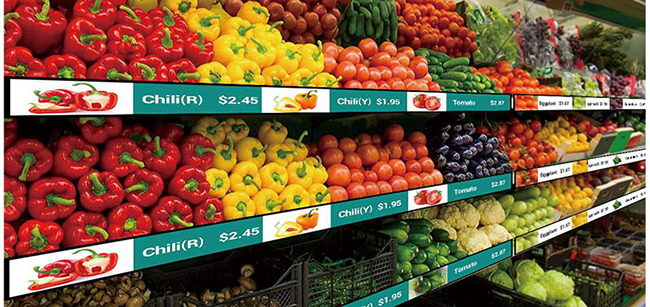

1, Replacing messy paper labels with digital shelf displays keeps
shelves clean and tidy.
2, Showing video ads on the screen is a more effective way to
stimulate buying desire.
3, One stretched screen can gracefully display information and
prices for multiple products.
4, Digital content can be updated via network to save labor and
material costs.
Want To Get In Touch?
If you would like to discuss your requirement or need any
additional information on our Shelf edge lcd display, and then
please do not hesitate to contact our sales team.
