High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing

    Buy cheap High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing from wholesalers

    Buy cheap High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing from wholesalers
    • Buy cheap High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing from wholesalers
    • Buy cheap High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing from wholesalers
    • Buy cheap High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing from wholesalers
    • Buy cheap High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing from wholesalers

    High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXT-T430-10A
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T,Western Union, Alibaba trade assurance
    Supply Ability : 5,000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    High Resolution 15 Inch Multi Touch Screen Compatible Dust And Water Proofing

    Hot 15" to 220" USB Infrared Multi Touch Screen/Touch Panel/Touch Screen Panel


    Features

    • Dust and water proofing, anti-vandal;
    • Stable and no drift;
    • No light spots;
    • High durability and quick response to touch of any opaque object;
    • Wide range of temperature;
    • Transparency and c;
    • ROHS, CE,FCC compatible

    Advantages

    • Multi-point write with peace,precise multi-point touching.
    • USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
    • Longevity of service , maintenance free.

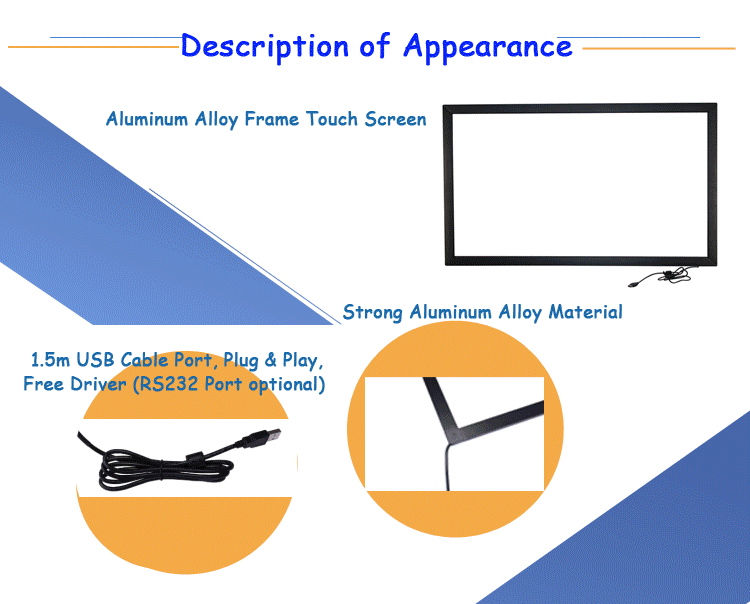

    • Aluminum alloy shell with strong stability.
    • Tempered glass with high light transmittance and true color rendition.
    • Without driver ,supporting plug and play.
    • Adapt to internal and external linked environment
    • No touching tools,no special touching pen is required, only your finger.
    • Fast response(less than 16 ms), no blind area,breakpoints, jump points, pause and other
    • undesirable phenomena.
    • Compatiblewith multiple systems

    Specification:


    Size
    General Size15 inch to 200 inch
    Fit in withPanel display device
    Performance
    Touch modeSingle-point touch,Multi-touch, drag, draw-line, rotate, zoom in/out
    Linearity Error<1.5mm
    Response Speed<15ms
    VandaproofSteel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
    Scanning Speed50scans/s
    Mechanical
    Input MethodFinger or gloved hand (rubber, cloth or leather)
    Touch Activation ForceNo minimum touch activation force is required
    Touch TimesOver 6,000,000 Single Point Touch
    Minimum Touch Object>3mm
    Vandal-proofNo break by 1-pound steel ball dropping from 130 cm high
    Surface DurabilitySurface durability is that of glass,Mohs' hardness rating of 7
    Environmental
    Environmental TemperatureOperating: -20°C ~ 70°C
    Storage: -40°C ~ 85°C
    Relative HumidityOperating Range:0%~90% RH (no dew falls)
    Storage Range: 0% to 95% RH (no dew falls)
    AltitudeUp to 3,000m
    Ambient LightDirect sunlight 90°to 30°to the display surface Touch detection operational
    Direct sunlight all angles to display surface Free of false touch reports
    Electrical
    Power SupplySize under 82”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms
    Size above 82”(82” not included): external AC-DC power adaptor
    InterfaceFull Duplex USB 2.0 (Full Speed) Plug and play compatible
    Serial RS-232. Baud Rate: 9600, 8 Data Bits,1 Stop Bit, No Parity
    CurrentTypical 150MA@+5VDC;350mA, maximum
    Power<2W, operating current<300mA
    Electrostatic Protection15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)
    ControllerIntegration inside touch panel
    Life time7 Years
    Operating System
    Support SystemWindows2000XP2003vista7CELinuxWindows 8LinuxAndroid
    Support SoftwareOffer SDK.

    Are you a factory?

    Yes,100% pure factory,you're welcome to visit and audit us anytime. OEM/ODM order is welcome!

    What's your minimum order?

    1pcs Sample.

    Could you give me better price&service?

    Better price and service always for you!Win-win make us go for long!

    What about your After-Sale Service?

    1. Supply OEM&ODM order,independent QC department,more times testing and checking well

    2. 100% QC pass checking and testing before shipping.
    3. 13 months of warranty.
    4. CE,RoHs,FCC.

    What is your advantage?

    1. we can do the designs according to the customers'requirement

    2. we can open customers'own mould as per their reuirement

    3. we can offer you the high quality & reasionalble price

    4. we can offer your a good after-sell service

    5. we have strong professinal design team

    6. promptly delivery. small order is welcome.
