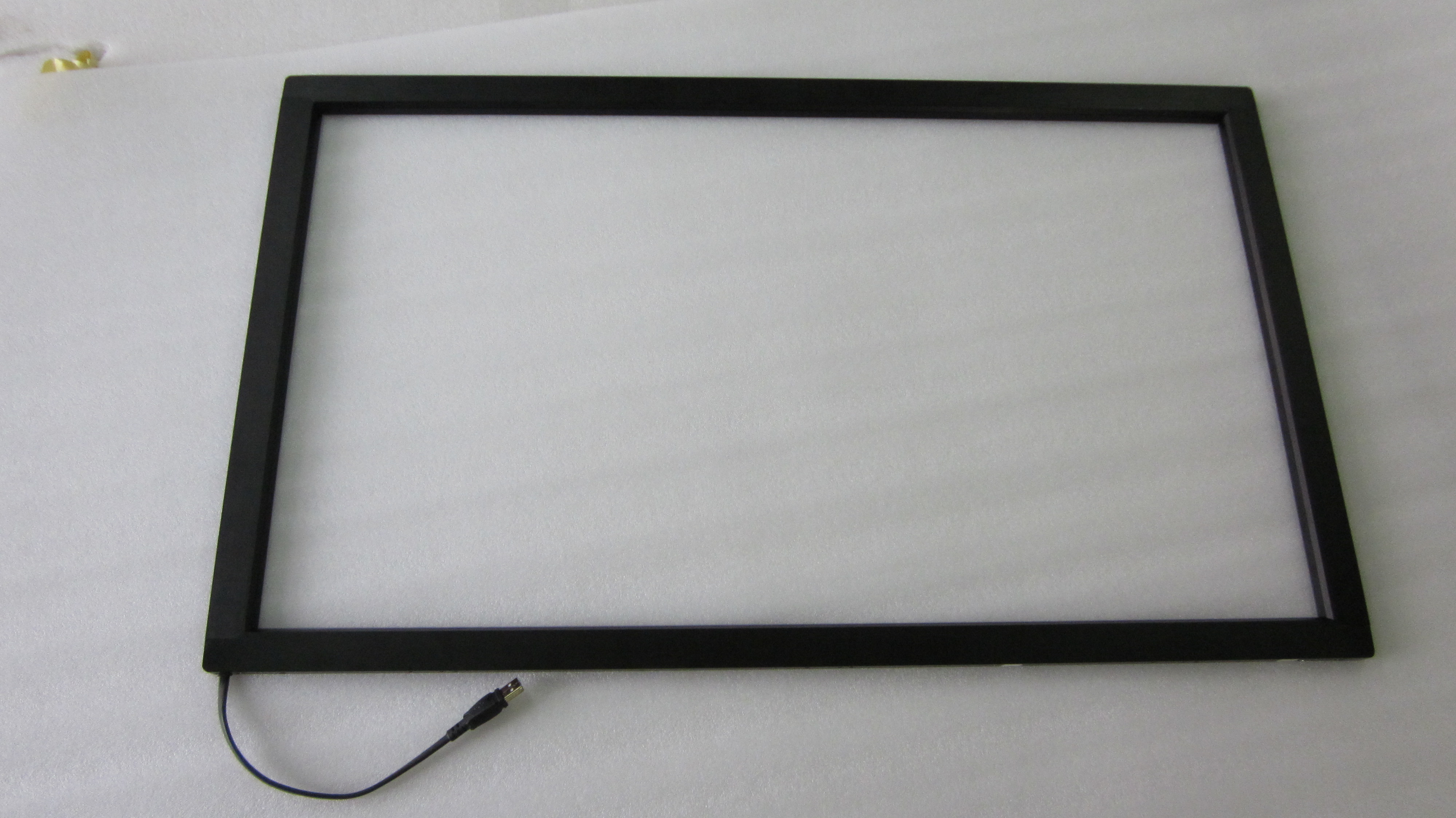

72'' 10 Multitouch Points Infrared Touch Frame Overlay
Product Description:
ZXT are specilized in large size Infrared(IR) touch screen frame
panel from 15inch till 320 inch,it could work with projector and
also viedowall,big size of monitor,kiosks etc. With good quality
and performance in surper
markets,bank,school,subway,airport,exhibition halls,conference
room,meseums,clubes,bars etc .
ZXT ir multi touch products are being more and more popular in the
market all over the world because we bring users a stunning
interactive experience and offer reliable quality products based on
good price.
We are looking for the representative,distributor,agent,wholesaler
in your country and region.
Hope to do business with you based on Mutual advantage !
True multi-point touch screen Main Feature:
1. Multi Touch,2,6,10,16,32 Points touch version is optional .
2. High stability without drift, free from the affects to time and
environment change
3. High suitability free from the interfere of currency, voltage,
and static due to the complicated environment
4. High light transmittance reach as high as 100%, No film overlay,
preserves optical clarity
5. Long service life, vandal- and abrasion-resistant, Scratch
Resistant, Water/Dust Resistant screens, ideal for rugged
applications
6. Easy activation, no touch pressure is required; no special
material is required for touch activation; any material, whether
soft or hard, whether conductor or nonconductor can be used as an
activating stylus.
7. IP65 Waterproof, Full sealed design.
8. Large size of touch frame is available from 90 inch till 320
inch .
Application:
1. Point-of-information kiosks
2. Electronic catalogs
3. Gaming, POS, ATM, lottery, and amusement
4. Industrial control rooms
5. Computer-based training
6. Add on Video wall or monitor
Specification:
| Touch technology | True multi-point touch screen |
| Touch pressure | Zero pressure |
| Light transmittance | Transmittance of 100% to 100% (no glass) |
| Touch physical resolution | 1000×1000 |
| The report resolution | 32767×32767 |
| Maximum recognition point size | 8mm×8mm |
| Minimum contact detection | 3mm |
| Surface durability | 7H |
| Resistance to bad environment | Redundancy is extremely high, 20% sensor damage, still can keep the
multi-point touch |
| Touch point recognition | Touch point: 2 points, 4 points, 8 points, 12 points, 16 points, 32
points |
| Working voltage | 5.0 V (internal voltage of 3.3 V) |
| Average current | <200MA |
| Power consumption | 1W |
| Maximum current | <350MA |
| Dormancy current | <10mA |
| Response speed | 12ms |
| interface | USB2.0 HID mode |
| Scanning speed | 50 frames per second |
| Interference by | No electrostatic interference, drift phenomenon |
| life | A single sensor continuous work: 5000 hours
Time-sharing work, the continuous life: 5000 hours by 200 In energy
saving mode, can also improve the 10 times of working life (long
time no touch cases, low speed running) |
| Touch number | No mechanical structure, the equivalent capacitance screen 200
million times |
| Object shape recognition | support |
| Touch mode | Fingers, pen (not capacitance, electromagnetic pen) |
| Support platform | windows xpwindows78linuxandroid |
| Software interface agreement | TUIO protocol (UDP mode), TUIO Adobe Flash mode (TCP model)
Windows7multitouchHID agreement |
| Apply liquid crystal size | 17-150 inches |
| Humidity range | Work, storage temperature: 90% RHd 40 ℃ without dewing |
| Temperature range | Working temperature: 0 ℃ to 50 ℃ |
| Storage temperature | —40℃-85℃ |
FAQ:
Q: What operation system it support ?
A: compatible with Win7/8, Android, Linux and ELO
Q: What is your MOQ?
A: 1pcs
Q: How proceed the order?
A: online or offline
Payment terms: TT, Western Union, PAYPAL, Trade Assurance.
1) For sample order : 100% T/T, Western Union, Paypal.
2) For bulk order more than ten thousand dorllors : 50% Deposit T/T
Blance before goods ship out
Q: What is your guarantee period?
A: All touch screen 1 years warranty.
Q: What is your delievey time ?
A: Sample order : within 1-3 days, 5-12 working days for bulk production after confirmed.
If you have any other questions, please contact our salesman as
soon as possible.
