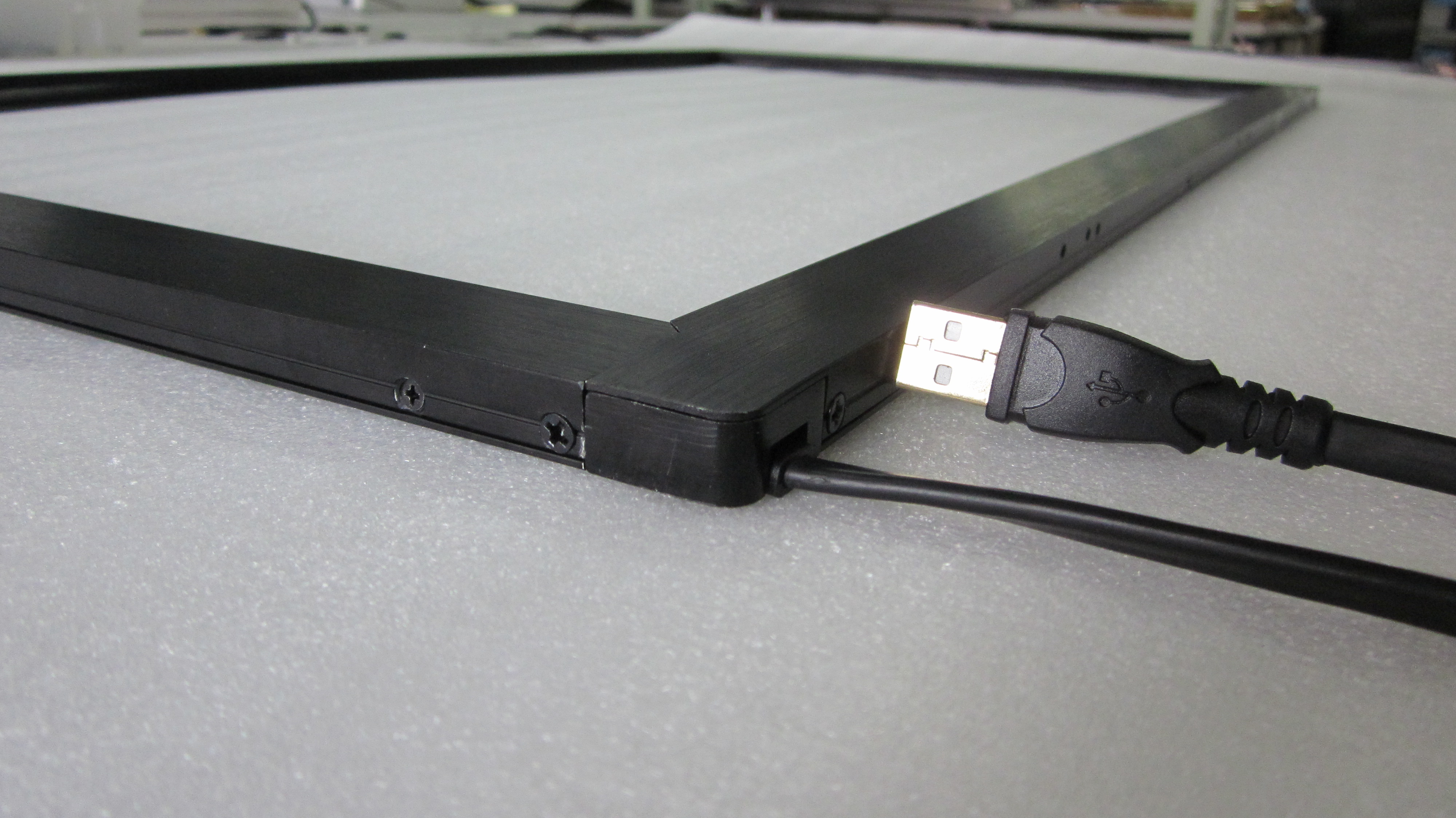

    Infrared Touch Screen Frame Kit For Display Screen , Touch Frame Overlay Aluminum Alloy Shell

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXT-T320-10A
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T,Western Union, Alibaba trade assurance
    Supply Ability : 5,000 pcs per month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Infrared Touch Screen Frame Kit For Display Screen , Touch Frame Overlay Aluminum Alloy Shell

    32768*32768 Resolution Sensitivity USB 32/43/49/55/65 Inch Infrared IR Multi Touch Screen Frame


    What is "Multitouch"?

    Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.ZXT's Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Adverstising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.


    How does it work?

    An infrared touchscreen uses an array of X-Y infrared LED and photodetector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These LED beams cross each other in vertical and horizontal patterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can detect essentially any input including a finger, gloved finger, stylus or pen. It is generally used in outdoor applications and point of sale systems which can not rely on a conductor (such as a bare finger) to activate the touchscreen. Unlike capacitive touchscreens, infrared touchscreens do not require any patterning on the glass which increases durability and optical clarity of the overall system. Infrared touchscreens are sensitive to dirt/dust that can interfere with the IR beams, and suffer from parallax in curved surfaces and accidental press when the user hovers his/her finger over the screen while searching

    for the item to be selected


    Specification:

    Size
    General Size15 inch to 159 inch
    Fit in withPanel display device
    Performance
    Touch ModeSingle-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out
    Resolution(Interpolation)32768*32768
    Linearity Error<1.5mm
    Response Speed8ms~15ms
    Mechanical
    Input MethodFinger or gloved hand (rubber ,cloth or leather)
    Touch TimesUnlimited
    Touch Activation ForceNo minimum touch activation force is required
    Minimum Touch Object5mm
    Vandal-proofNo break by 1-pound steel ball dropping from 130 cm high
    Surface DurabilitySurface durability is that of glass, Mohs' hardness rating of 7
    Optical
    Glass:Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional
    Light Transmission92%
    GlossAntiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units
    Environmental
    TemperatureOperating Range: -20°C ~ 70°C;
    Storage Range: -40°C ~ 85°C
    Relative HumidityOperating Range: 0%~90% RH (no dew falls)
    Storage Range: 0% to 95% RH (no dew falls)
    AltitudeUp to 3,000m
    Ambient LightDirect sunlight 90°to ±30° to the display surface Touch detection operational
    Direct sunlight all angles to display surface Free of false touch reports
    Electrical
    Operation VoltageTypical +DC 5V, +4.75V to +5.25V
    InterfaceFull Duplex USB 2.0 (Full Speed) Plug and play compatible
    CurrentTypical 150MA@+5VDC; 350mA, maximum
    Power<1.5W, operating current<300mA
    Electrostatic Protection15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)
    ControllerIntegration inside touch panel
    Agency ApprovalsCE, FCC, Rohs
    Operating System
    Operation System :windows 7, 8, 10,XP, Linux, Android

    Advantages


    • Double-point write with peace,precise multi-point touching.
    • USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
    • Longevity of service ,maintenance free.
    • Aluminum alloy shell with strong stability.
    • Tempered glass with high light transmittance and true color rendition.
    • Without driver ,supporting plug and play.
    • Adapt to internal and external linked environment.
    • No touching tools,no special touching pen is required ,only your finger.
    • Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and other
    • undesirable phenomena.
    • Compatiblewith multiple systems, enables multi-touch in windows XP ;

    Application


    l TV

    l PC

    l Gaming device

    l Exhibition

    l Education training

    l Pubic query machine

    l Self-service machine

    l Map directory

    l Any interactive machine

    l And more
