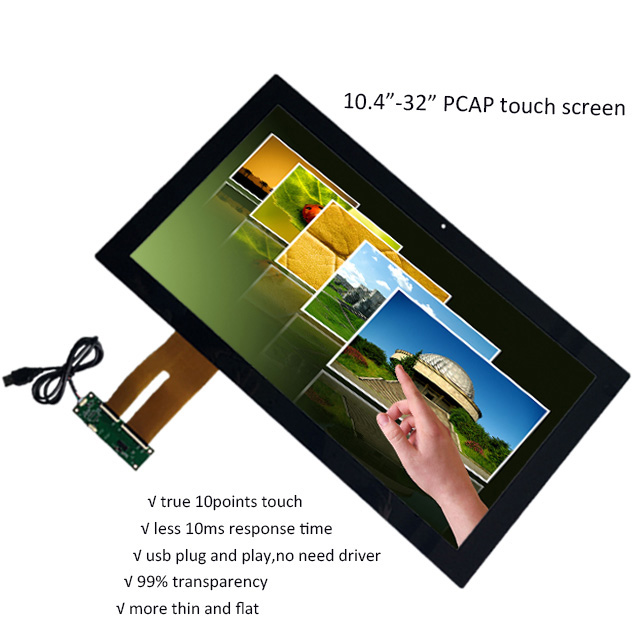

21.5 Inch Multi Touch Capacitive USB External Touch Screen For
Self-Service Terminal
(PCAP)Capacitive Multi Touch Screen Specification:
ZXT's projected capacitive touch screen is developed by American
expert,used high quality raw material imported from Japan,and the
quality control is under the super vision of Taiwanese esperienced
technical stuff.The item has long life,high stability,high
transmittance,large size,maintenance free features,and is idea for
smart phone,trblet PC,Gps
Advantage:
- Capacitive touch technology.
- Highest resolution, sensitive and fast response
- Easy to install with LCD monitor
- Dustproof and Waterproof maintenance free.
- Touch screens can be built in specific dimensions requested by
clients in custom orders
- Flexible interaction; waterproof presentation, Gloves touch,10mm
glass, replaceable cover glass and anti-interference presentation.
Application:
- Point-of-information kiosks
- Vending and ticket sales
- Electronic catalogs
- Gaming, lottery, and amusement
- Public pay phones
- Multimedia marketing
- Banking/financial transactions
- Industrial control rooms
- Computer-based training
Capacitive Multi Touch Screen Controller Picture
| OS | Version | Interfaces |
| Windows | Windows 8(Need logo submission)
Windows 7
Windows Vista, XP/2000
Windows CE.net/5.0/6.0/7.0
Windows Embedded
Windows XP Tablet PC edition | USB/RS232 |
| Linux | Distribution based on Kernel 2.6.24 and
later.
(Ubuntu/Linux Mint
Debian
Fedora
Red Hat/CentOS
Magaie/Mandriva/Mandrake
SUSE/openSUSE | USB/RS232 |
| Android 2.3 ~ 4.4 | USB/RS232 |
| Mac | Mac OS, Mac OS X (PowerPC, Intel CPU) | USB |
| QNX | QNX RTOS v6.3 | USB/RS232 |
Projected Capacitive Touch Panel Specification
---The specification of 21.5 inch touch screen--- |
| Specification |
| Size | 21.5 inch |
| Product name | 21.5 inch capacitive touch screen |
| Model number | ZXT-D215-10B |
| Type | Capacitive touch screen |
| Struture | CTP(Glass+Glass) |
| Outline Dimension | 524x321.8x1.8mm |
| Active area | 478x269.80 mm |
| Thickness of cover glass | 1.1 mm |
| Touch screen solution | COB(Chip on the board) |
| Touch controller | EETI |
| Operating system | Win 7,win8,win ce,android,Linux,Mac |
| Interface of CTP | I2C/USB/RS232 |
| Surface Hardness | 6H |
| Transparency | 90%min |
| Touch Points | 10 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples ,
50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Specification:
| Size | Ratio | Frame Size | Viewable Area | Sensor Size | Active Area | Cover Thickness (mm) |
| (Inch) | WxH(mm) | WxH(mm) | WxH(mm) | WxH(mm) |
| 15 | 4:3 | 346.08*270.02 | 305.00*229.01 | 323.10*251.79 | 307.10*231.07 | 1.1 |
| 15.6 | 16:9 | 387.00*231.00 | 344.00*194.00 | 362.00*222.00 | 346.00*196.00 | 1.1 |
| 17 | 4:3 | 377.00*309.00 | 338.92*271.34 | 363.92*301.34 | 340.92*273.34 | 1.1 |
| 18.5 | 16:9 | 440.80*271.40 | 410.80*231.40 | 430.80*261.40 | 412.80*233.40 | 1.1 |
| 19 | 4:3 | 421.00*346.00 | 377.32*302.06 | 402.36*334.06 | 379.32*304.06 | 1.1 |
| 21.5 | 16:9 | 524.00*321.80 | 478.00*269.80 | 508.00*303.80 | 480.00*271.80 | 1.8 |
| 23.6 | 16:9 | 555.50*343.00 | 525.50*297.00 | 545.50*333.00 | 527.50*299.00 | 1.8 |
| 27 | 16:9 | 658.00*416.00 | 598.00*336.00 | 640.00*390.00 | 600.00*338.00 | 1.8 |
| 32 | 16:9 | 765.00*466.50 | 698.70*393.30 | 750.00*450.00 | 704.00*396.00 | 1.8 |
