USB Interface 49 Inch Capacitive Touch Foil Film In Projection
Screen
The foil is completely transparent and can be laminated onto glass.
By placing a rear projection foil or LCD display behind it, you can
create an interactive touch screen.
Overview
The Interactive Touch Foil
foil that manufactured by ZXT Quickly enabling a touch screen in
your ordinary glass world. 's large format flexible touch panel,
cover from 30 to has 3 key parts. 1st is film sensor, 2nd is
electronics controller, we call it eBoard, 3rd is driver. Film
sensor is a green technology product, has high transparency, light
and thin. the embedded nano wire grid is a sensor network, that can
precisely positioning hands touch action. It use sensing
technology, easily change an to bulletproof touch screen. eBoard
use SoC architecture, so the PCB is small and strong noise
filtering algorithm, It can detect weak signal that caused by
hands.
Driver support Windows XP/7/8, include 32 bit and 64 bit. sion, Mac
OS X, Android 4.0 up version. has two version, one is cling film
version, It designed for interactive window and could be peeled off
for reusing. Another is permanent version, once you peel off the
cover layer and laminate onto the glass. the sensor will be
permanently fixed. fi and bulletproof are the application can
fulfill with this requirement. It Will bring added and fun to use
The Interactive Touch Foil Features
Safety and robust
Antiscratch, laminate on the back of
Waterproof, dustproof, bulletproof,
No expose components, safety.
No mechanical components with long life
Industrial temperature range: -20 °C to +
Excellent experience
Zero pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.
2 points Multitouch, Support TUIO & Win Native
Precise touch & realtime response
Art and SciFi
High transparency ≥93%, glasslevel transparency
No bezel of touch area
Thin and light, the sensor thickness only 0.17mm
Thruglass touch, the maximum thickness of glass can reach 20mm.
Only hands valid, no touch action of metal, plastic, and so on.
Advanced features
Low power consumption, the maximu consumption is only 0.5w
Flexible, could be applied to curve surface screen
The film sensor could be laminated on any smooth nonmetallic flat
Various size from 17" to 100", lowest cost customization.
aminate on the back of glass
proof, Acidproof
long life
0 °C to +80 °C level
Thin and light, the sensor thickness only 0.17mm
glass touch, the maximum thickness of glass
nly hands valid, no touch action of metal, plastic,
Zero pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.
touch, Support TUIO & Win Native
imum power
Flexible, could be applied to curve surface touch
The film sensor could be laminated on any smooth
0", lowest cost
Specification:
| Detection Method: | Projected Capacitance technology using horizontal vertical wires |
| Screen Sizes: | From: 17" To 120" . Available in 4: 3 & 16: 9 format. |
| Position accuracy: | Approximately 3 mm absolute, 1 mm relative. No drift |
| Alignment: | Software drivers provide a calibration facility |
| Sensitivity: | Adjustable by software. Can be programmed for different thickness
of glass and even use with gloved hands. Functions with
non-mertalise, single construction glass 16mm thick. |
| Speed of response: | Depends upon glass thickness. Typically 50 to 100ms. |
| Output: | RS232C communications to a 9 pin D female or USB Port |
| Software Compatibility: | Windows XP & Vista. Windows7 windows8 Android,Linux,MOC |
| Temperature range: | Better than -10 to +70 |
| Humidity Controller: | 0% to 95%. Unaffected by condensation |
| Light Transmission: | Depend upon glass thickness, typically better than 95% |
Applications:

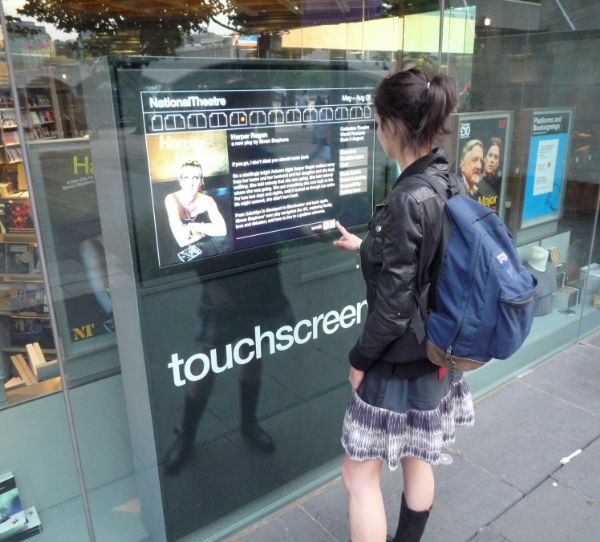

1. Shop/Store window displays
2. Indoor and outdoor kiosks
3. Glass partitions
4. Corporate offices
5. Training and meeting rooms

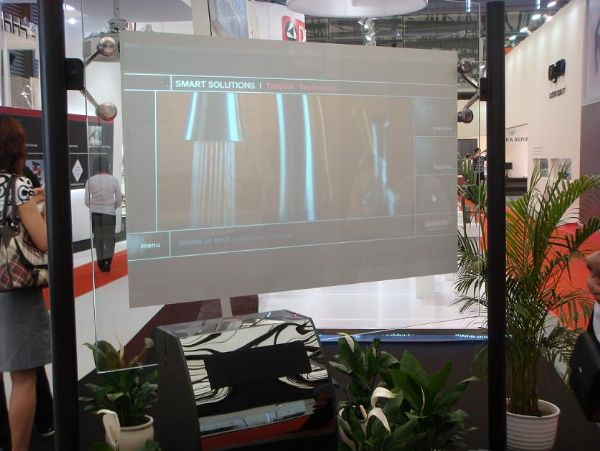

6. Exhibitions and conferences
7. Museums and visitor attractions
