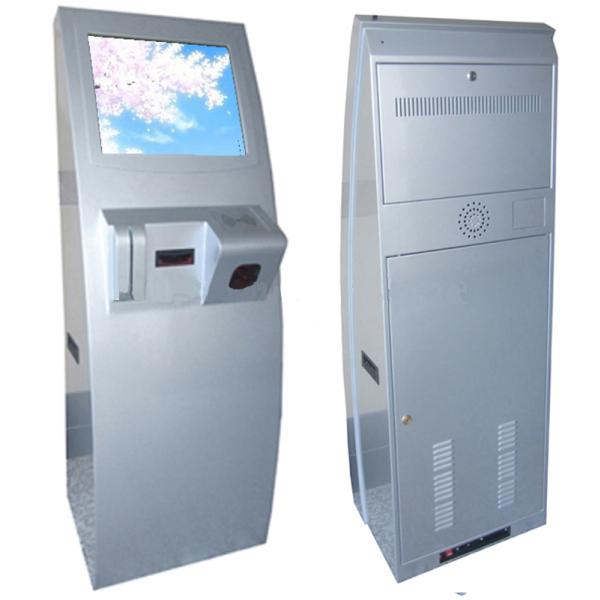

17 19 Inch Floor Stand Touch Payment Terminal Kiosk With QR Reader,
Card Reader, Bill Acceptor
Overview:
1. 19'' touch payment terminal cabinet
2. 19'' touch panel, SAW, Infrared touch panel and Resistive are
optional
3. 19'' Grade A+ TFT LCD screen
4. With Magnetic card reader, thermal printer, ID card reader and
Barcode scanner.
Specification
| Item | Description | Item | Description |
| Monitor | 19LCD | Hard Disk | 500GB |
| Mouse | Robust trackball | Memory | 4G |
| Microphone interface | Available | Frequency | 2.8G |
| Handset interface | Available | CPU | Intel G1037 |
| Internet connection | Rj45 Ethernet interface | Power | AC110-260, 50-60Hz |
| PC software (like Windows XP) | Windows 7/Linux | USB socket | For U-disk, U-key or Mp3 |
| Options:(Many options are available and the following items are for
your reference) |
| 58/80mm thermal printer | Flash card |
| Internal CD/DVD Rom | Wifi connection |
| DVD rom with r/w | Web camera |
| Rf Card reader | 500VA UPS |
| Metal keyboard | Magnetism Swipe card reader |
| Multi card reade r(electronically) | Multi card reader (manually) |
| Bill acceptor | Coin acceptor |
Detail Parameter:
1) Touch screen
a. Infrared touch panel or Resistive touch panel
b. Resolution: 4096x4096
c. Deviation of Error: ±<1.0%
d. Surface Hardness: Mohs' hardness rating of 7
e. Hitting Life Expectancy: 50,000,000 cycle times
f. Operating Force: Touch force less than 100g(adjust allowed)
g. Response time: 5 ms
2) 19″Grade A+ LCD monitor
a. Resolution: 1280x1024
b. Brightness: 300 cd/m2
c. Contrast ration: 1000: 1
d. Contact Bounce: 5 ms
3) Computer
a. CPU: Intel G1037/G2030 CPU
b. Hard disk: Seagate 500GB
c. RAM: KingMAX 2GB
d. Ports: USB ports, RS-232 ports
e. Intel H61 motherboard
4) Frame
a. 1.5MM CRS frame, compact, anti-rust
b. Build in power control panel, and hi-fi-speaker
c. RJ45 interface
Intelligent design, with mother board and accessories settled
inside the frame, you can control the computer without case.
Accessories for this kiosk
Printers, Card Readers, Barcode scanner
Power Switch, Cold Fan, Keys for every open door, loader speakers
Working Enviroment:
a. Temperature: 0~45 degree
b. Humidity: 30%~90%(Relative humidity)
c. 110v~240v are available
Note:
To the standard frame, no other connector, the color is silver
gray.
If need add any other devices or change the color, please kindly
tell us.
Test process
Before we send the kiosk to you, in order to make sure the kiosk
run well after you get it, we will test at least 24 hours for each
kiosk.
Packing
There are 4 layers total for kiosk, the first one is antistatic
film, the 2nd is foam,
the 3rd is carton box, and last one is wooden case for exporting.
