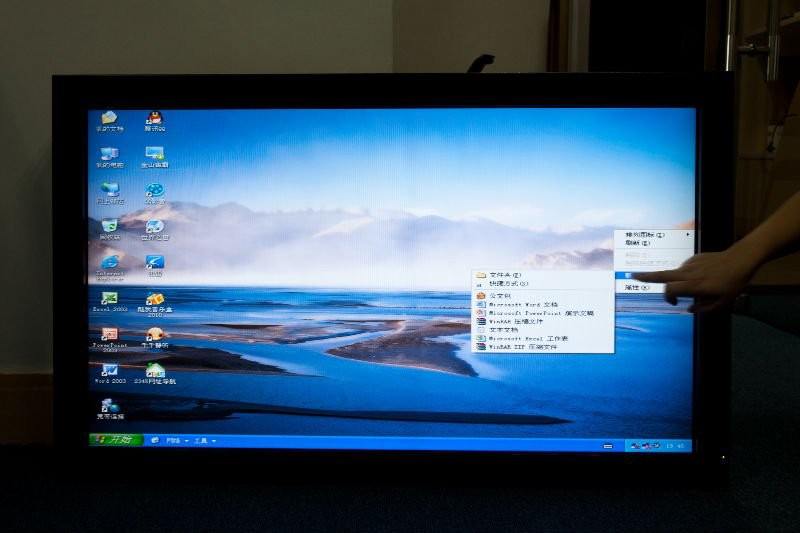

Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell

    Buy cheap Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell from wholesalers

    Buy cheap Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell from wholesalers
    • Buy cheap Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell from wholesalers
    • Buy cheap Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell from wholesalers

    Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXT-WTM840A
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T,Western Union, Alibaba trade assurance
    Supply Ability : 2,000 pcs per month
    Delivery Time : 12-15 workdays
    • Product Details
    • Company Profile

    Indoor Uitra Thin Touch Screen LCD Monitor Wall Mount 84 Inch Aluminum + Metal Shell

    84 Inch 3840*2160 Interactive Industrial Indoor Wall Mount Lcd Screen Touch Monitor


    This is high definition Totem screens with high luminance and color displays. It has multiple combination solutions with flexible display functions integrated within a small space clearance design added to low maintenance cost and high reliability. It comes in sizes ranging from 32" to 84" Display Panel Screens.


    10-point infrared touch frame provide an excellent touch function while lower the total cost, it's a perfect solution for touch monitor.


    OS has Android and Windows on option.


    Descriptions

    Model No.ZXT-WTM840A
    LCD Screen84" 16:9
    Resolution3840*2160
    Videwing of Angle89/89/89/89
    Display Area(L/R/U/D)
    Color16.7M
    Brightness360
    Contrast4000:1
    Speaker2×8Ω5W
    Response Time6.5MS
    Power Supply & Consumption110-240V 50/60HZ 140W

    Photo FormatsJPEG ,BMP ,GIF ,PNG
    Audio FormatsMP3,WAV,WMA
    Video FormatMP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V
    Shell MaterialAluminum+Metal
    Bare diemension2000*975*100mm/ 910*540*70mm
    Honeycomb carton dimension2270*1180*250mm/ 940*590*90mm, N.W./G.W.: 110/ 185kg
    Touch TypeIR 10-point touch
    Normal Working Temperature0°——50°
    Normal Storage Temperature-20°——60°
    AccessoryPower Cables, English Manual
    OSD LanguageEnglish, Chinese, French, German, Italian, Spanish,Arabic

    The specification of Touchscreen Panel


    We usually default infrared touchscreen panel(2 points) with these feature for our machine as follows :

    1, Super Touch speed up to 300 dots/second(3ms) brings you an experience of free touch .
    2, Function of automatic detecting and correcting guarantees stable working within 2 seconds once any equipment failure is caused by strong interface.
    3, Positioning precision is limited within 1mm thanks to adapting of D precision promoting technology and Automatically compensate the touch sensing at four edges, making touching at edges easier.
    4, Supporting automatical adjusting of touch according to dust, making less impact caused by dust.


    Touch Max Resolution32768 X 32768
    Transparency>90% ; Up to 100%
    Scanning Speed>50s scans/S
    Response speed<12m
    Touch typeHorizontal Multiple Dot Touch screen
    Touch precision0.625mm
    Min Touch object5m
    Touch intensityOver 60,000,000 Single Point Touch
    Operation SystemWin7 or Win8.1,Win10
    Operating VoltageDC, 5V 5%
    Power SupplyKeyboard Serial Interface
    Power<1W(Current < 200mA)
    CommunicationRS-232 interface Port, USB port
    Vandal-ProofSteel Ball (Diameter 63.5mm 1040g weight) drop from 1040mm , No break
    Temperature Operatingbelow 41℃~70℃
    Temperature Storagebelow 50℃~85℃
    Altitude3000m
    NoiseNone
    Life Time>10 year
