    University Teaching Flat Touch Screen Monitor , 70 Inch Learning Monitor Mit Touchscreen

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXT-WTM700A
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T,Western Union, Alibaba trade assurance
    Supply Ability : 3,000 pcs per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    University Teaching Flat Touch Screen Monitor , 70 Inch Learning Monitor Mit Touchscreen

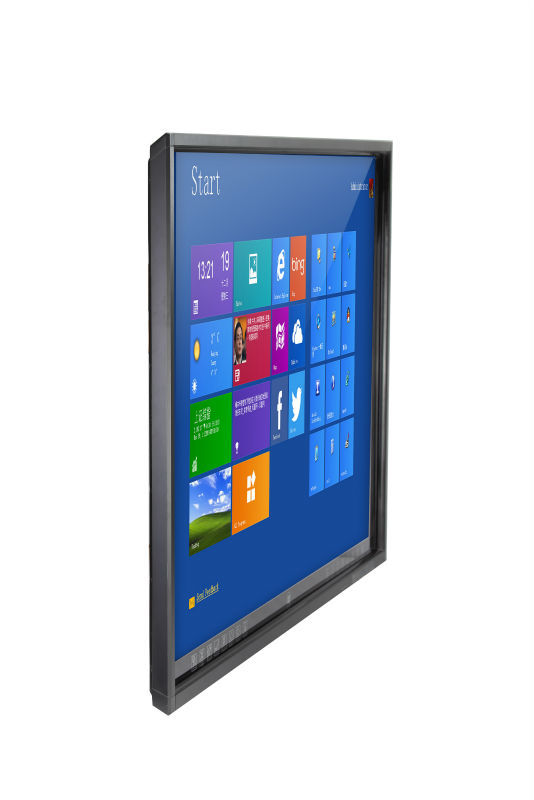

    70 Inch High School University Teaching And Learning Touch Screen Interactive LCD Monitor


    1. Features

    2. Open and pluggable PC box built-in.

    3. All connection cables inside.

    4. Ultra thin machine body.

    5. Ultra low standby power consumption

    6. Common interface in front, convenient for operate

    7. One key operate of power

    8. Seperated for turning off the backlight, automatic control backlight


    Infrared touch screen specification

    Touch technologyNon contact infrared sensing technology
    Object sensingNon-transparent object(such as finger,pen etc)
    Touch pressureZero pressure
    Active size≥ Ø5mm
    Support more points2,4 points
    Time of response1 point:click:13ms continuous writing:3ms

    More points:click:13ms continuous writing:5-10ms

    2 points touch at one time:continuous writing 10ms

    Speed of cursorUp to 300dots/second
    coordinate output32768(W)×32768(D)
    positioning accuracy≤2mm
    PC portUSB(USB power supply)
    working voltageDC 5.0V±5%
    Touch screen glass4mm,Physicallytempered morse 7level anti-explosion,transparency : >92%
    driverWithout driver
    Operating systermSupport Win 7/Win XP/ Win 2000/Linux etc
    Life timemore than 60millions times at the same position
    Anti external light test

    filament lamp (220V,100W) ,perpendicular distance up to 350mm

    sunlight intensity up to 90000Lux

    Display screen specificaiton(mode)

    size70inch
    Screen typTFT LED screen LED back light
    Display size1538.88mm(H) x865.62mm (V)SS
    Resolution1920 x1080
    lightness400cd/m2
    contrast4000:1
    Display colour1.06B
    Time of response6.5ms max
    View angle178
    Life time30000 hours

    Interface specification

    Parameter list:


    TV specification

    TV specification

    Colorful standardPAL/SECAM
    Channel quantityATV(200CH)
    TV input75 Ω
    RF connection typeIEC
    Hi-frequency interface1
    AV in(yellow)1
    AV out(yellow)1
    YPbPr(green bule red)1
    Multi media2
    HDMI interface2
    Voice output power8W+8W
    Speaker quantity2
    Surround soundY
    YV-SC
    front interfaceUsb Host1(from PC)
    USB Touch1(touch screen connect computer outside)
    HDMI1(into TV basic board)
    PC specificationBasic boardmini ITX structure
    powerDC19V in,industry power module,no fan
    basic chipsIntel H61
    CPUDefault G2010,support Intel LGA1155 celeron,povos,I3,I5,I7
    Basic frequencyDual core 2.8G
    DDRDDR3 1333 4G
    Hardware500G SATAII 2.5inch HDD
    displayIntegrated card Intel(R)HD Graphics
    network cardIntegrated 10/100/1000M bps ethernet
    USB4
    Earphone out1
    VGAout1
    WIFIExtensible 2.4G/5G,150/300Mbps
    BluetoothExtensible
