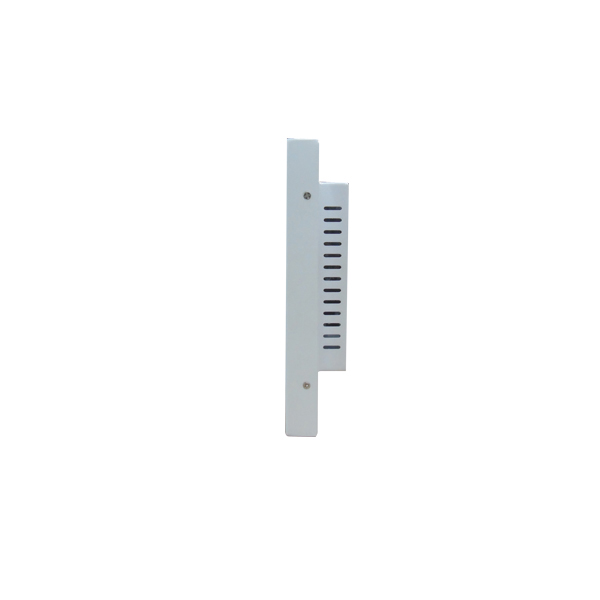

Customized 28.6 Inch Stretched Bar Lcd Full HD Digital Signage
Media Player Bulit In USB/RJ45/SD Card Interface
Product Description for ultra wide lcd display/bar lcd
display/stretch lcd display
Widely use on Airport, station, catering industry, entertainment
industry, medical institution, golf course, supermarket,
exhibition, stadium and gymnasium, financial industry, organ and
enterprise, building adverting and billboard advertising, subway,
hotel, rail way station, bus station, lift, bank, commercial
center, wedding photograph, large exhibition, mobile show,
chain-store and etc.
Main functions:
1. Full HD 1920*1080, LED screen, support display models of 16:3,
(Horizontal/Vertical) etc.
2. Multi-groups of on/off time schedule could be setted remotely
and control the display through Internet.
3. Interactive optical multi-points touch function, touch in two
points simultaneously.
4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM,WMV,DAT,
JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.
5. Scrolling texts in English and Chinese version are available,
various display modes for titles (Fonts and colors of letters,
background clolors, the relative attributes of rolling dirctions in
horizontal or vertical could be adjusted).
6. Support media contents combine by videos, pictures, flashes,
marquee etc.
7. Support uploading files through Wifi and cable network.
8. Intelligent system for arranging and playing programs, easy and
fast operation.
9. Support displaying in dual screens, play different video files
and audio contents in these two screens.
Panel Size: | 28.6 Inch |
Display Resolution: | 1366(H)*256(V) |
Brightness: | 800cd/m2 |
Contrast: | 1200:1 |
Color Depth: | 16.7M |
Pixel Pitch: | 170.25(H)*510.75(V) |
Type: | TFT |
Response Time: | 6ms |
Life Cycle: | 60000hrs |
Viewing Angle: | 89/89/89/89 |
Menu Language: | Chinese,English,customized |
Operating Mode : | Android,Windows,Linux |
USB | 1 ( USB2.0 interface) |
SD | 1 (Compatible MMC/MS) |
CF | 1(optional) |
L/R audio input | 1 (RCA*2) |
L/R audio output | 1 (RCA*2) |
Power Input: | 100~240V AC |
Power Consumption : | ≤120W |
Working Temperature | 0℃~50℃ |
Working Humidity: | 10~80% |
Storage Temperature: | (-20℃)~60℃ |
Storage Humidity: | 10~80% |
Dimension: | 731.2(H)*165.4(V)*10.8(D)mm |
Housing: | Aluminium |
Color: | White,Red,Green,Blue |
Installation Method: | wall mount |
Certificates: | 3C,CE etc. |
