65 Inch Big Size 1080P Full HD High Definition Wall Mounted Smart
Digital Advertising LCD Display
Specifications of the Wall Mounted Adverting Displayer
| Specification for Panel | Specification for main board |
| Screen size | 65" TFT LCD Panel | CPU | Quad core / 1.5GHz |
| Backlight | LED Backlight | RAM | 1 GB 2GB |
| Max.Resolution | 1920x1080 | Internal Memory | 8GB |
| Viewing angle | 178°/178° | External Memory | USB flash drive/TF card/ SATA etc. |
| Color | 16.7M | Operating system | Android 4.4(up to 5.1) |
| Brightbess | 360cd/m2 | Play mode | Looping, timing, inter-cutting etc. |
| Contrast ratio | 3000:1 | Video format | MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv mp4 etc. |
| Response time | 5ms | Picture format | BMP, JPG,JPEG, PNG, GIF |
| Viewable area | 1435*808mm | Audio | MP3 |
| Working power | AC100-240V 50/60Hz | Network | 10/100M Ethernet,WIFI |
Speaker power consumption | 110W | Content Management | support B/S and C/S architecture |
| Max power consumption | 50W | Video Output | ×2 LVDS |
| Standby power consumption | 0.3W | HDMI input | ×1 ( If need 3G function,HDMI input is not available) |
| Working humidity | 10%-90%(Without dew ) | VGA input | ×1 ( If need 3G function,VGA input is not available) |
| Working temperature | 0℃-40℃ | Audio Input | ×1,Line In,3.5mm Headphone |
| Storage temperature | -20℃-60℃ | TF port | ×1 |
| Remarks | USB2.0 port | USB OTG×1(can be used as HOST) USB HOST×1 |
| Installtion type | Horizontal & vertical available | Real time clock | Yes |
| Accessory | User Manual *1 | Timing switch | Yes |
| Remote control *1 | Remote control | Yes |
| CD *1 with software | System upgrade | USB upgrade and network upgrade supported |
| Wall mounted kits and power plug | Working temperature | 0℃-40℃ |
| Demensions | | Storage temperature | -20℃-60℃ |
Applications of Wall Mounted Advertising Displayer
♦ Public information– news, weather, traffic and local (location specific) information,
such as building directory with map, fire exits and traveler
information.
♦ Internal information- corporate messages, such as health & safety items, news, and so
forth.
♦ Menu information– pricing, photos, ingredients, and other information about the
food(s) being offered, including nutritional facts.
♦ Advertising Displays – usually either related to the location of the sign or using the
audience reach of the screens for general advertising.
♦ Brand building– in-store digital sign to promote the brand and build a brand
identity.
♦ Influencing customer behaviors– directing customers to different
areas, increasing the "dwell time" on the store premises, and a
wide range of other uses in service of such influence.
♦ Enhancing customer experience– applications include the reduction of perceived wait time in the
waiting areas of restaurants and other retail operations, bank
queues, and similar circumstances, as well as demonstrations, such
as those of recipes in food stores, among other examples.
♦ Fashion Store Dressing Room– Helps shoppers to choose dresses inside a fashion store.
♦ Enhancing the environment– with interactive screens (in the floor, for example, as with
"informational footsteps" found in some tourist attractions,
museums, and the like) or with other means of "dynamic way-finding"
Main Features of the Wall Mounted Advertising Display
♦ Based on Android 4.4 system,all the android application
APK,software automatic restoration
♦ Support 1080P HD signal display,synchronizing servers and terminal
player
♦ Support Brower to connect the internet,daily record unloading and
timing setting
♦ Real time management and controlling,browser,breakpoint upload and
download,multi-mode up
♦ Updating programs(video,pictiures,texts,PPT,etc) through the
Internet
♦ Auto power on/off,electronic clock & data,split screen and fixed
template display setting
♦ WAN &LAN long-distance setting play/sleep/reboot ect.function
♦ Supported file encryption setting(preset the password for the
program),Weather forecast display

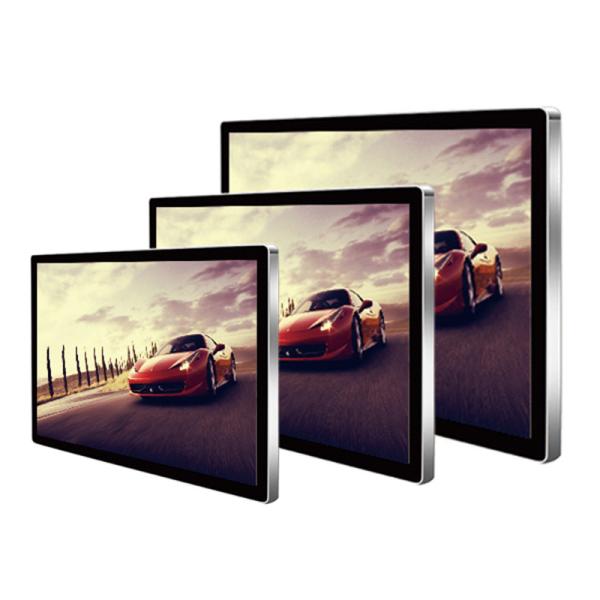

♦ Available in a wide range of sizes: 19” ,22” ,24" , 27”, 32”, 43"
, 49” , 55” ,65"
Working Principle of Digital Signage
Digital content can be created easily via digital signage which
allow advertisers to combine audio, video, image and interactivity
by themselves. Digital contents displayed on the signage is
presented in one of the following formats:
♦ Text - Scrolling text. Either scrolling text, or text dynamically
updated via external newsfeed source.
♦ Images - Scrolling images, usually in the format of digital
advertisement posters.
♦ Video - Usually in the format of commercial TV advertisements.
♦ Interactive interfaces - Combining with Touch Screen and which
allows two-way communications with the users. It helps to engage
users and also helps advertisers to gain insight in customer
behaviors.
