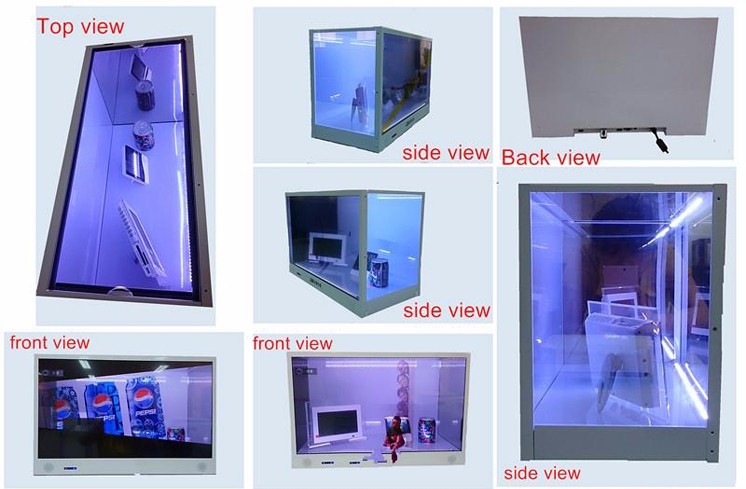

22 Inch White Color Indoor Flexible HD LCD Display Box Transparent
USB Auto Play LCD Display
Standalone version :
* Chipset: Mstar, support 3840*2160P video
* Main function: auto playback video in loop
* Support play list setup (times to play very file, timing of
playing files)
* Functions: video+music+slide show+ebook+calendar+clock+timer
on/off
* Support video formats: MPEG2, MPEG4, H.264, RMVB, AVI, DIVX,
(avi,mov,ts,mpg,ms2ts,mkv) etc, 1080p.max.
* Support audio formats: MP3, WMA, AC3 etc.
* I/O terminals: USB, SD card slot, HDMI input
* Audio output: built in loudspeakers 2pcs*5W
* Customized: boot logo/opening logo
* Multi-language: Chinese, English and so on
* Power Supply: AC input 100V-240V, DC output 12V 3A
* Accesorry: remote control, CE approved AC power adapter
Network windows version :
* Chipset:Intel I3 or I5 , support 3840*2160P video,
* DDR: 4GB
* SSD: 64GB
* I/O terminals:USB*4,VGA*1,HDMI*1,RJ45*1,Audio*1,MIC*1,DC IN*1
* Two-channel stereo audio output
* WiFi :802.11 B.G.N
or Android version
I/O :TF*1,USB*2,HDMI output*1,Earphone*1,RJ45*1,DCIN*1
WIFI Signage Display : 802.11b/g/n (WEP/WPA/WPA2)
Configuration description:
1. OS: Android 4.4.4
2. CPU: Allwinner A83T , Octa core, RK3288 Quadcore Cortex-A17 1.8GHz
3. DDR3 :1GB or 2GB
4. Internal storage: 8GB NAND FLASH
5. External memory: High-speed 8GB TF card(Max support 32GB)
| Key Function |
| 1. | Auto start and auto play in loop function. |
| 2. | Upgrade contents of the memory card (or Built-in memory) by simply
inserting an USB flash drive |
| 3. | Timer function: the player turns on/off at the same time everyday
according to your setting |
| Main Function |
| 1. | Play mp4 advertising video, mp3 music and digital photos; Built-in
10-65 inch TFT LCD screen (LCD ratio : 16 : 9), with tempered glass
or acrylic board protection; easy-to-install on supermarket
shelves, tabletop, showcase and lift, etc.; |
2. Play from:
| --Compact Flash card (CF card)/ SD/ MMC
--USB flash drive
--Built-in memory |
| 3. | Upgrade contents of the memory card (or built-in memory) by simply
inserting an USB flash drive, no need to take out of the memory
card |
| 4. | Timer function: the player powers on / off automatically everyday
at the time pre-set; It can also automatically play and non-stop
replay within the pre-set time frame |
| 5. | No DVD style mechanical movement, hence more durable and suitable
for long-hour advertising playing |
| 6. | Touch/ Motion sensor/ network option |
| 7. | Theft-protection device effectively prevent the player and CF card
from being stolen in public place and protect the power cord being
pull out easily |
| 8. | Audio output: 2 built-in high quality stereo speakers
|
| 9. | With professional easy-to-use stand set; hang on wall or stand on
table |

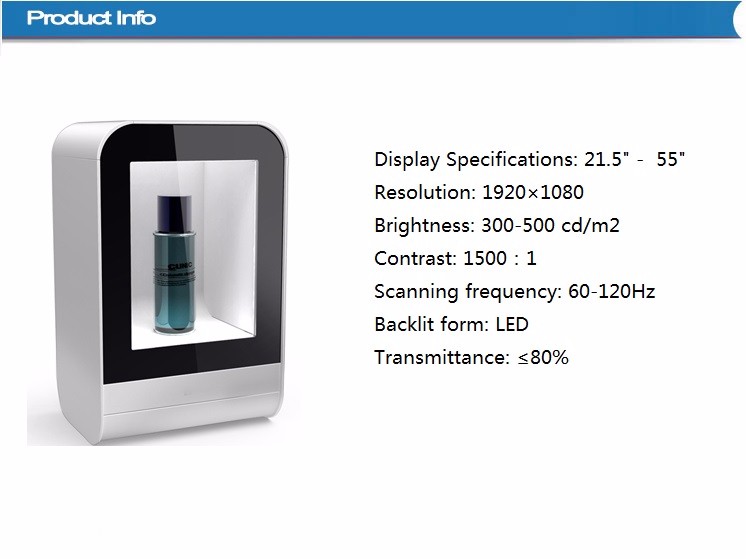

| Specification |
| Panel size | 21.5" to 55" |
| Display area(mm)/mode | 476.64(W)×268.11(H) 16:9 |
| Maximum resolution | 1920x1080 |
| Display color | 16.7M |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| USB | 1 ( USB2.0 interface) |
| SD | 1 (Compatible MMC/MS) |
| CF | 1(optional) |
| Speaker | 2×5W |
| OSD display( screen menu display) |
| Menu language | Chinese/English( Multiple Language Supported) |
| Power |
| Power supply | 100~240V |
| Input Voltage | DC 12V-2A |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Working humidity | 20%~85% |
| Storage humidity | 10%~90% |
