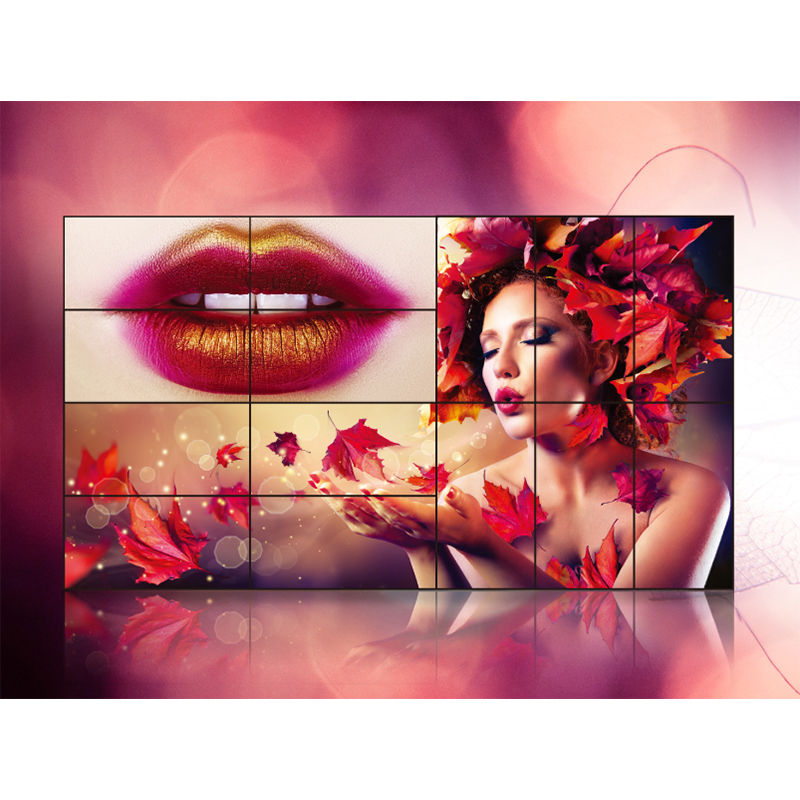

High Brightness 55 Inch Video Wall Screens , Shopping Mall Thin
Bezel Panel For Video Wall
A video wall is a special multi-monitor setup that consists of
multiple computer monitors, video projectors, or television sets
tiled together contiguously or overlapped in order to form one
large screen. Typical display technologies include LCD panels,
Direct View LED arrays, blended projection screens, Laser Phosphor
Displays, and rear projection cubes.
Specifications:
| Name | 55" DID lcd video wall |
| Panel parameter | size | 55inch*9 pcs |
| Type | 3*3 |
| Module size | 1018.353*572.544MM |
| Brand | From LG |
| resolution | 1920*1080 |
| brightness | 450cd/m*2 |
| Pixel pitch | 0.7455(h)x0.7455(v)mm |
| Surface Treatment | Haze5.5%, Hard-coating(3h) |
| Display Colors | 8bit-16.7m |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| view angle | 178°/178°(H/V) |
| Bezel | 6.7MM or 7.3MM |
| Flooring stand | Optional |
| Name | 55" DID lcd video wall |
| Panel parameter | size | 55inch*4 pcs |
| Type | 2*2 wall mounted + stand |
| Module size | 1215.3(h)*688.1(v) |
| Brand | SAMSUNG |
| resolution | 1920*1080 |
| brightness | 450cd/m*2 |
| weight | 21 g per piece |
| Pixel pitch | 0.63(h)x0.63(v)mm |
| Surface Treatment | Haze5.5%, Hard-coating(3h) |
| Display Colors | 8bit-16.7m |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| view angle | 178°/178°(H/V) |
| Bezel | 5.3MM |
LCD Video wall processor (US-VWPXX)specification
Input: CVBS Each one BNC terminal, support PAL/NTSC all formats, as
well as HDTV720P,1080I,1080P
RCBHV: Each one D15 port terminal to support SVGA/XGA/WXGA/UXGA
YPbPr/YCbCr: Re-using the above RGBHV interface, support PAL/NTSC
ALL FORMATS, AS WELL as 720P,1080I, 1080P
Output: RGBHV Each one D15 port terminal to support
SVGA/XGA/WXGA/UXGA
YPbPr/YCbCr: Each 3 BNC terminals,( re-use the above R.G.B of
RGBHV),support PAL/NTSC all formats 720P/1080i HDTV
Operate mode: Panel key operation(needs customization)
Standard: RS232 port( provide free control software)
Infrared: Remote Control Operation
Display: unit combination "Can support up to 14 display units by 1
single machine
, multi-machines can be paralleled to control up to 12x14 display
units"
Engineering software: Customized
Working temperature: 0-60 degrees
working humidity: 5-95 %RH
AC voltage power supply: 180-240V/50Hz
power consumption: Max 100W/single machine
Chassis Specifications: 4U standard rack chassis( can choose 2U/1U
chassis when there are fewer output units)
Chassis Size: 431x264x350(mm)
Weight: about 15KG
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory. We integrate R&D team, manufacture,quality
control team, sale and after-sale service.
2. Q: For the first order, can we place a sample order?
A: Yes,of course.It's our honor to offer you sample.
3. Q: About the quality control, how will your factory guarantee
it?
A:Quality is priority.We have Total Quality Management System to
control quality. We have our own professional engineer with many
years’ experience. Our factory has gained FCC, CE, RoHS
authentication.
4. Q:What is the delivery time?
A:For the one have in stock finish product, the delivery time is
within 3- 5 days; with enclosure only in stock is 7-10 days;
without in stock 20-25 days; for customized samples and large
quantities bulk order, the delivery time is 20-30 days.
5.Q: What is the price? And do you provide customization, OEM or
ODM service?
A:Our price is depend on the functions, sizes, designs, quantities,
applications etc, please send the inquiry and tell us more about your requirements and project then enable us to
quote the price accordingly. We have structure engineer teamwhich can provide customization, OEM or ODM service.
6.Q: What is your after-sale service?
A: Best service provided for our customers not only before sale
service but whole life of the goods.
-Warranty period:one year for whole machine.We will help solve it
on line via TeamViewer with our engineer.
-How to deal with warranty:If damaged by non-artificial,the buyer
should pay the freight when sending the defect parts to the seller,and the seller should pay the freight when sending the replacements
or repaired parts to the buyer.
8. Q: What is your MOQ?
A: MOQ:1pcs.Any quantity is acceptable for your order. And the
price is negotiable for large quantity.
