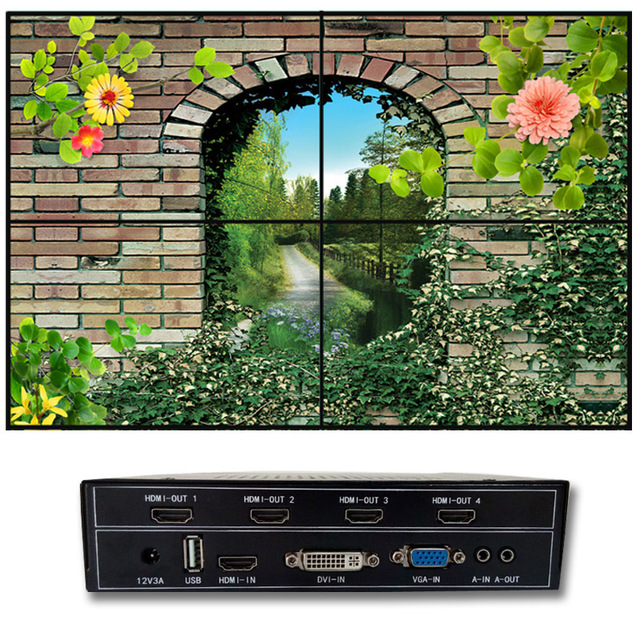

47 Inch LG HD 1920*1080 4,9mm Slim Bezel LED Backlit 2x2 LCD Video Wall/ LCD TV Wall Indoor

A video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. Typical display technologies include LCD panels, Direct View LED arrays, blended projection screens, Laser Phosphor Displays, and rear projection cubes.

Technology

LCD Video Wall Screen (SAMSUNG DID)
Specifications
Model No.					ZXT
Panel Size					LG DID LCD Screen
Aspect Ratio					16:9
Max Resolution Support					1920x1080/1366x768
Color					8Bit,16.7M
Brightness (nits)					450
Contrast					4000:1
Visual Angle (H/V)					178°
Response Time					<=6ms
Life(hrs)					>60,000(hrs)
Input and output
DVI					1
HDMI					1
D-15 RGB Input(VGA)					1
YUV/YPbPR					1(3xBNC)
S-(YC)					1(2xBNC)
Composite Video Input/(AV)					3(3xBNC)
Composite Video Output					2(2xBNC)
AUDIO INPUT					1
Split Screen					Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply					AC100V~240V
Maximum Power Consumption					250W
Standby Power Consumption					<=3W
Temperature
Working Temperature					0°C~50°C
Working Humidity					20%-80%
Dimension					1025.65x579.84x126.73mm
Video Wall Controller(Built-in each Screen)
Model No.
Input	CVBS	3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG

http://vr.ecerimg.com/data/ca/ec/domaindemo-215654/vr/index.html

Focus on indoor and outdoor commercial LCD display application, ZXT LCD supply various video display products from global market. The founder of Shenzhen ZXT LCD Technology Co.,Limited, Mr.Kevin always insist on best quality and reasonable price as company principle. We would like to work closely with our business partner from all over the world to keep a long-term win-win business relationship.

Stretched LCD Display, LCD Video Wall,Outdoor Digital Signage, LCD interactive whiteboard, Touch screen kiosk, multi-touch Table, Self-service kiosk, CCTV Monitor, Open frame Display, Transparent LCD Display and 3D Holographic Display,OLED screen is our main product.

On 2018, ZXT LCD expand plant scale to 800 square meters and increase new production lines to meet the growing demand from global Market. In order to control our product quality, we set up dust-free anti-static standard workshop of international advanced production and testing equipment. And our product achieved CE approval, Rohs certification for many places all over the world.

End user, System integrator, trader, retailer or distributor from multimedia business company, advertisement company or agency,PC engineer or IT solution Provider are all welcome to join us!

Customer-first approach: We focus on our customers’ experience and success, always doing what’s best for our customers as well as their customers.

Complete solution: We provide the right combination of services, expertise and technology to meet your business goals.

Our company have been in this line of business for more than 9 years experience. In the Past three years, ZXT LCD have served more than 200 clients from different countries and regions. with the same beliefs on kind-hearted and responsible, which make us go further in future cooperation.
