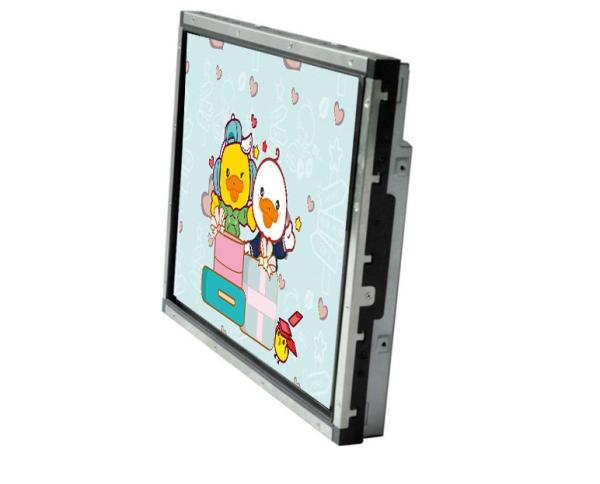

15 Inch Anti-Glare Saw Open Frame Touch Screen Monitor,15 Inch Full
Hd Touch Screen Monitor
Feature
- 1. Touch function and LCD display all in one solution, performance
excellent, good appearance;
- 2. Higher sensitivity and response speed than same product, very
smoothly when touch and draw line;
- 3. Built-in RS232 & USB 2kinds interfaces,Mood interfaces of RS232
and USB can be selected by customer ;
- 4. High life time, LCD upgrade or change will not cause the touch
monitor appearance different;
- 5. Hight brightness, high contrast ratio, quick response time,
multi color support, wide viewing angle;
- 6. National standard professional production line, one million
dust-free environment ,screen body and LCD screen fit;
- 7. Removeable External mounting bracket and National standard VESA
install holes;
- 8. Certification: FCC,CE;
- 9. Accept customization
Technical Specification
Touch Screen Monitor
|
| Model | ZXT-OPT150A |
| Series | Water-proof and Compact |

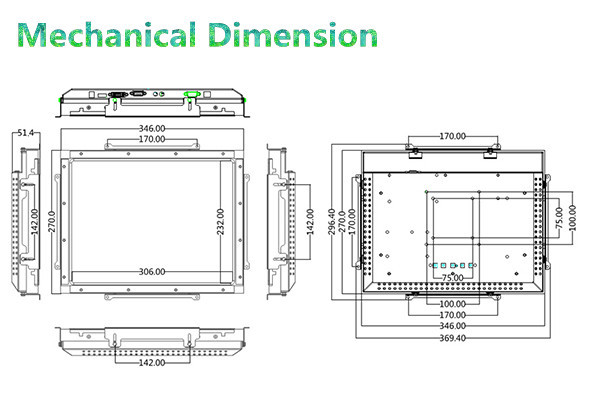

| Monitor Dimensions | Width: 346mm Height: 270mm Depth: 51.4mm |
| Weight(N.W/G.W) | 4Kg / 6.8Kg (Approx.) |
| LCD Type | 15"Active matrix TFT-LCD (Panel Model :G150XG03 V3) |
| Video Input | VGA,DVI and HDMI |
| Recommend Resolution | 1024×768@75Hz |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio,
Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 3 years for SAW touch screen; 1 year for LCD |
| Agency Approval | FCC,CE,RoHS |
LCD Specification
|
| Active Area(mm) | 304.128(H)×228.096(V) |
| Resolution | 1024×768@75Hz |
| Dot Pitch(mm) | 0.297×0.297 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 80°/80° |
| Contrast | 500;1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 2s/6s |
| Support Color | 16.2M |
| Backlight MTBF(hr) | 50000 |
Touchscreen Specification
|
| Type | Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |
External AC Power Adapter
|
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
Environment
|
| Operating Temp | 0~50°C |
| Storage Temp | -20~60°C |
| Operating RH | 20%~80% |
| Storage RH | 10%~90% |
Detail Pictures
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
15 inch anti-glare SAW openframe touch screen monitor,15 inch Full
HD Touch Screen Monitor
| Solutions to Common Problems |
| Problem | Suggestion(s) |
The touch monitor does not respond after you turn on the system | 1)Check that the monitor’s Power Switch is on. |
2)Turn off the power and check the monitor’s power cord and signal cable for proper connection. |
| Characters on the screen are dim | Refer to the About Touch monitor Adjustments section to adjust the brightness. |
| The screen is blank | 1)During operation, the monitor screen may automatically turn off as a result of the Power Saving feature. Press any key to see if the screen reappears. |
2) Refer to the About Touch monitor Adjustments section to adjust the brightness. |
| Screen flashes when initialized | Turn the monitor off then turn it on again. |
| “Out of Range” display | Check to see if the resolution of your computer is higher than that of the LCD display |
| Touch doesn’t work | Make sure the touch cable is securely attached at both ends. |
Multi touch Screen Monitor Application
1. Business Institutions: Department Store, Super Market, Exclusive
Store, Hotel, Restaurant, Medicine Store, etc.
2. Financial Institutions: Bank, Stock Market, Insurance Company,
etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office,
etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition
Center, Stadium, Museum, Ticket Agency, HR Market, Lottery Center,
etc.
5. Real Eatates: Apartment, Villa, Business Building, etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub,
Massage Parlor, Internet Cafe, Golf, etc.
Trade Info
1. Trade terms: FOB, CIF, EXW
2. Payment term: L/C, T/T, Western Union, Escrow
3. Packing: Wooden casing or cellular packaging
4. Shipping: By air, by sea, by express delivery
Sample Charge
1. Samples change:According to your design.
Sampling time:2-5 days
2. Samples charge:Free for Existing Samples
Sampling time:1 day
Advantage
1. Low MOQ:It can meet your promotional business very well.
2. OEM Accepted:We can produce any your design.
3. Good Service:We treat clients as friend.
4. Good Quality:We have Strict quality control system.
Good reputation in the market.
5. Fast&Cheap Delivery:We have big discount from forwarder(Long
Contract)
