    Multimedia Open Frame LCD Display Metal Housing Black Built - In Media Player

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXT-OPT170A
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T,Western Union, Alibaba trade assurance
    Supply Ability : 5000 pcs per month
    Delivery Time : 5-10 workdays
    • Product Details
    • Company Profile

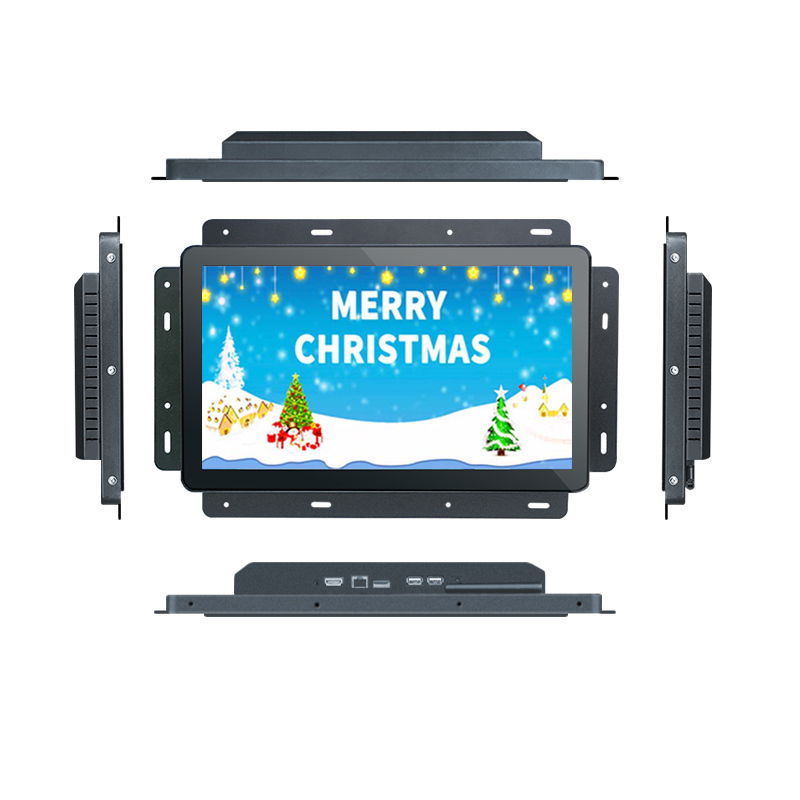

    Multimedia Open Frame LCD Display Metal Housing Black Built - In Media Player

    AC Input Metal Housing Black Color 17 Inch Open Frame Multimedia LCD Display Monitor


    Main Features :


    1), Open Frame/Embedded Design Enclosure.

    2), Metal case customization design.

    3), Input supply : AC 100V~240V, 50/60Hz.

    4), Menu language : Chinese/English(Multiple language supported).

    5), Built-in media player(Optional)

    7), with Touchscreen panel(Resistive, Saw, projected Capacitive touchscreen is optional).

    8), Support media contents like video,pictures,flashes etc.

    9), Cost effective price with high quality LED Screen.

    10), Multiple signal input interface, to meet diverse application requirements.


    Installation bracket is on option, intallation holes will be prepared in the housing and with our L-shaped bracket, client to choose how and where to install on site.


    Specifications
    Model No.ZXT-OPT170A
    Panel size17" TFT-LCD
    Display area(mm)/mode340(W)×273(H) 4:3
    Maximum resolution1280x1024
    Display color16.7M
    Pixel Pitch(mm)0.264(H)×0.264(V)
    Brightness (nits)300nits
    Contrast1000:1
    Visual angle170°/170°
    Response time5ms
    Horizontal frequency30-75KHZ
    Vertical frequency56-75KHZ
    Life(hrs)60,000(hrs)
    Input and output
    Composite video input2 (BNC×2)
    YPbPr input1 (BNC×3)
    VGA1
    HD1
    Composite video output1 (BNC×1)
    Video
    Color systemPAL/NTSC/SECAM
    OSD display( screen menu display)
    Menu languageChinese/English
    Power
    Power supplyAC100V~240V,50/60Hz
    Maximum power consumption35W
    Standby power consumption3W
    Temperature
    Working temperature0°C~50°C
    Storage temperature-20°C~60°C
    Working humidity10%~75%
    Storage humidity85%
    Appearance
    Body dimension(Lx W x H)mm381.0×300×69
    Panel color/appearanceWhite,black,customized
    Case MaterialMetal
    Net weight5.8kg
    InstallationOpen frame

    Touch Screen for option:

    IR Touch ScreenFeatureUSB Interface, Plug & Play, Free Driver
    Resolution32768*32768
    Response Time8MS-15MS
    Input MethodFinger or other Opacity Touch Medium
    Compatible OSWindowsXp,7,8,10,Linux,Mac,Android
    Work VoltageDC 5V(+4.75_+5.25V)
    Capacitive Touch ScreenFeatureUSB Interface, Plug & Play, Free Driver
    Tempered Glass 3mm
    Input MethodFinger , Capacitive Touch Pen
    Transparency≥85%±5%
    Compatible OSWindowsXp,7,8,10,Linux,Mac,Android
    Connection CableFPC
    Active Force≤10g
    StructureGlass+Glass
    Nano Touch FoilFeatureUSB Interface, Plug & Play, Free Driver
    1.Available Adhesive to any medium, like Transparent Glass, LCD/LED Display Unit, etc
    2.Almost Transparent with Nano Touch Foil
    3.High Penetration to Capture finger touch/gesture over the medium.
    4.Large sizes available up to 167inch
    Input MethodFinger
    Compatible OSWindowsXp,7,8,10,Linux,Mac,Android
    Connection CableFPC
    Active Force≤10g
    StructureF+F
    Thickness≤100um

    We are well-known manufacturer of such open frames and can give you best deal under your budget.We are sure that we could be your final choice after comparing our product features and pricing as well. So, just click the type of frame and explore the product description to know more about open frame lcd display. If you have any other question, please contact our salesman as soon as possible.
