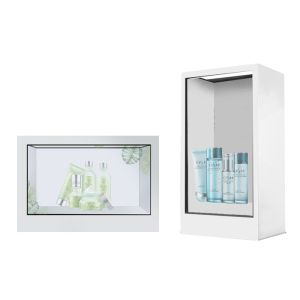

Customized Transparent Lcd Display 86inch transparent screen and
cabinet
1, Main Feature :
1), Support USB Drive Connection, HDMI output.
2), Great video decoding capability : Max supported 1920 X 1080
Full HD resolution.
3), Compatible File formats :
Avi/Mov/MP4/MPG/TS/VOB/WMV/MKV/RM/RMVB/FL and so.
4), Includes HDMI output : Not just a display but also a high
quality.
5), SYNC : Reading audio files when pictures playing, so as to
pictures have background music effects, meanwhile, Pictures switch
11 different transition effects, choice of 6 different playing
time.
6), Slideshow effect of photos : A variety of delicate
beautification image slide effect.
7), Rotating the screen by 180 degress.
8), Timer switch function :
Support the sixth the time sharing volume and sixth timing has
"weeks timing(day different time requirements) and day timing(daily
airtime)...etc, humanized options.
9) Variety of delicate beautification image slide effect high
quality music play : Built-in multi-function equalizer setting, a
variety of music playback modes.
2, The specification of 86 inch Transparent lcd panel:
| Model No | ZXTLCD-TL860 |
| Brand | ZXTLCD |
| Screen size | 86” |
| Panel type | A-Si TFT-IPS transparent panel |
| Panel No | HNT8601 |
| Max resolution | 3840(RGB)×2160(FHD) |
| Dot pitch | 0.1645×0.4935 mm (H×V) |
| Pixel layout | RGB vertical bar |
| Pixel pitch | 0.4935×0.4935mm (H×V) |
| Display area | 1895.04×1065.96 mm (H×V) |
| Appearance shape | Flat rectangle |
| Aspect ratio | 16 : 9 |
| Panel transparency | Above 75% |
| Contrast | 4200:1 (Typ.) |
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| Optical mode | IPS, normally black display, transmissive |
| Best perspective | Full view angle |
| Response time | 8 (Typ.)(G to G)(ms) |
| Display color | 16.7M/1.07B (8-bit / 8-bit + Dithering) |
| Color gamut | 71% NTSC |
| Panel Operating Voltage | 110V-220V |
| working frequency | 60Hz |
| Panel signal system | LVDS |
| Control signal system | HDMI/VGA/USB/Audio inputs |
| Operating temperature | -20°～80° |
| Storage temperature | -30°～90° |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Power Supply | AC100-240V(50-60Hz) |
| Working Power Consumption | ＜480W |
| Standby Power Consumption | ＜3W |
| Protype | Desktop / Floor standing / Interactive(Optional) |

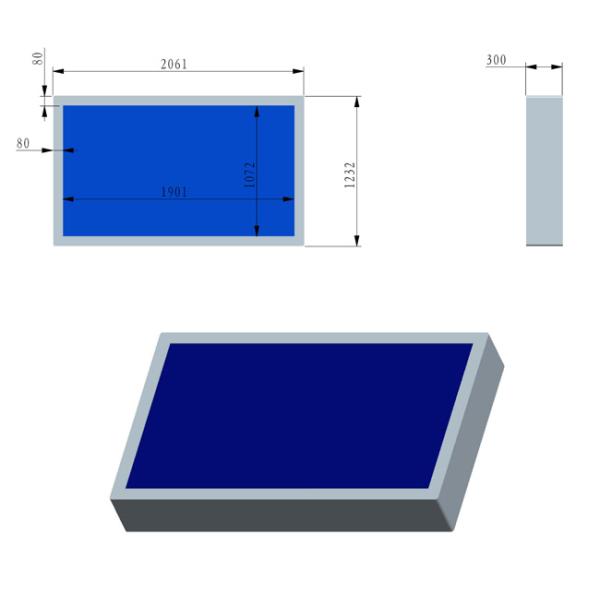

| Product size | Refer to design drawing |
3, The specification of internal USB plug and play PCB Board
| Operating system | Plug-and-Play / No windows OS, Auto loop play when power on |
| Input card slot | 1 x USB2.0, HDMI |
| Storage Media | Default USB(SD card is optional) |
| Download Media | Auto copy from USB |
| OSD language | Chinese/English |
| Support Video Formats | MP4 |
| Support Audio Formats | MP3 |
| Support Photo Formats | JPG |
| Support Doc formats | TXT |
| Audio Output | Built-in Power amplifer |
| Playback Mode | Repeat one/all, choose to repeat playback one file or all the files |
4, The Function Description :

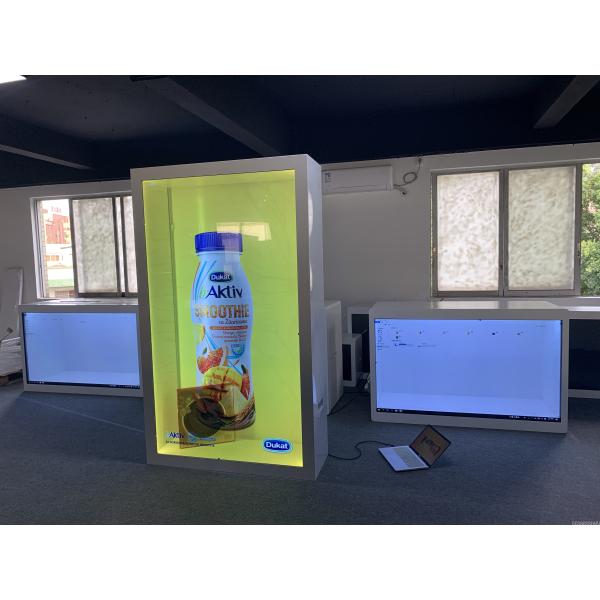

1), the inside product can be seen through the screen while the
pictures or videos are showed ;
2), Support Function : 1080P HD Display, Rolling Text, Daily Timer,
Automatically Turn on/off at set time .
3), It will enhance customers' experience on product brand with the
combination of digital information and actual product display.
4), No need to worry about software or special video production :
Our transparent LCD Display can automatically turn all pictures and
videos into transparency .
5), Not only a display but also a monitor. Our transparent LCD
Display includes HDMI input. In addition to playing multimedia
files, it can also be used as a monitor when connected to devices
such as PC or media Player .
Application :
| Watch | Attract customer's attention and raise excitement |
| Resting Rooms | Disseminate latest information in an unexpected way |
| Multifunctional decoration | On wall, on table, embedded in fixture....and so on |
If you would like to discuss your requirement or need any
additional information on our 86 inch Transparent lcd panel, then please do not hesitate to contact our sales team. Please send
us a inquiry or contact us via whats App directly.
