21.5 inch flush mount Transparent LCD Display see through lcd panel
Smart Window Showcase
1, Main Feature :
1) Ultra-thin body design, fashion and elegant in the apperance ;
2) Dynamic play on the transprent screen, physical products show
inside, combing static and dynamic display ;
3) Can be divided into different aspects of screen to play, support
multiple media format;
4) Support timer switch, remote network control, etc;
5) Novel mode of transmission, and strengthen customer shopping
experience, enhance the brand image;
6) Support 1080P full HD Display.
2, The specification of 21.5 inch Transparent LCD Display box :
| Model No | ZXTLCD-TL215 |
| Brand | ZXTLCD |
| Screen size | 21.5” |
| Panel type | A-Si TFT-LCD |
| Panel No | HNT21501 |
| Max resolution | 1920(RGB)×1080(FHD) |
| Dot pitch | 0.03874×0.11622 mm (H×V) |
| Pixel layout | RGB vertical bar |
| Pixel pitch | 0.11622×0.11622 mm (H×V) |
| Display area | 475×267 mm (H×V) |
| Appearance shape | Flat rectangle |
| Aspect ratio | 16 : 9 |
| Panel transparency | Above 75% |
| Contrast | 1000:1 (Typ.) |
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| Optical mode | IPS, normally black display, transmissive |
| Best perspective | Full view angle |
| Response time | 14 (Typ.)(G to G)(B to W) (ms) |
| Display color | 16.7M (8-bit) |
| Panel Operating Voltage | 12V, 5A |
| working frequency | 60Hz |
| Panel signal system | LVDS |
| Control signal system | HDMI/VGA/USB/Audio inputs |
| Operating temperature | -20°～80° |
| Storage temperature | -30°～90° |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Power Supply | AC100-240V(50-60Hz) |
| Working Power Consumption | ＜20W |
| Standby Power Consumption | ＜3W |
| Protype | Desktop / Floor standing / Interactive(Optional) |
| Product size | Customized |
3, The specification of internal USB plug and play PCB Board
| Operating system | Plug-and-Play / No windows OS, Auto loop play when power on |
| Input card slot | 1 x USB2.0, HDMI |
| Storage Media | Default USB(SD card is optional) |
| Download Media | Auto copy from USB |
| OSD language | Chinese/English |
| Support Video Formats | MP4 |
| Support Audio Formats | MP3 |
| Support Photo Formats | JPG |
| Support Doc formats | TXT |
| Audio Output | Built-in Power amplifer |
| Playback Mode | Repeat one/all, choose to repeat playback one file or all the files |
4,The Function Description :
1), the inside product can be seen through the screen while the
pictures or videos are showed ;
2), Support Function : 1080P HD Display, Rolling Text, Daily Timer,
Automatically Turn on/off at set time .
3), It will enhance customers' experience on product brand with the
combination of digital information and actual product display.
4), No need to worry about software or special video production :
Our transparent LCD Display can automatically turn all pictures and
videos into transparency .
5), Not only a display but also a monitor. Our transparent LCD
Display includes HDMI input. In addition to playing multimedia
files, it can also be used as a monitor when connected to devices
such as PC or media Player .

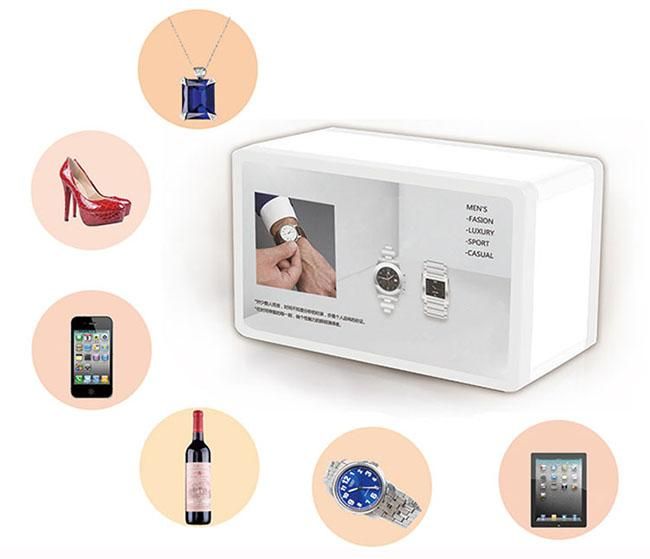

Application :
| red wine | Attract customer's attention and raise excitement |
| Resting Rooms | Disseminate latest information in an unexpected way |
| Multifunctional decoration | On wall, on table, embedded in fixture....and so on |
If you would like to discuss your requirement or need any
additional information on our 21.5 inch Transparent LCD Display box, then please do not hesitate to contact our sales team. Please send
us a inquiry or contact us via whats App directly.
