    19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-BAR190MTQSP
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300pcs per month
    Delivery Time : 7~10 working days
    • Product Details
    • Company Profile

    19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide

    19" stretched LCD Monitor with PCAP Touch Panel Integrated Bar-Type Ultra Wide Display


    Product Features


    • Available in a range of Screen Sizes from 16″ to 88″.
    • High Brightness Sunlight Readable LED Backlight
    • Unique aspect ratio to catch viewers attention
    • Available as enclosed monitors or component parts for integration
    • Industrial grade LCD solutions for optimum performance and reliability
    • PCAP Touch Screen options available
    • Digital Signage / Monitors / Touch monitors design options available.



    The specification


    The specification
    Model NoProduct modelZXTLCD-BAR190MTQSP
    LCD Screen PanelScreen size19" LCD Panel
    Active display area476.64(H) X 80(V)mm
    Resolution1920(V) X 540(H)
    Brightness500cd/m2
    Contrast ratio1200:1
    Display color16.7M
    Backlight typeWLED
    Viewing angles89°/89°/89°/89°(U/D/L/R)
    Response time9.5ms
    Lifespan50000 hours
    Main boardCPUMSTAR V56(TSUMV56RUU)
    InterfacesUSB2.0
    HDMI*2
    TF/Audio/DC IN
    TouchscreenTouch typein-TOUCH (P-Cap in-cell Touch)
    machine specificationOperating voltageUSB 12V/2A
    Power consumption≤25W
    Product size522.64(H)X126(V)X42.66(D)mm
    InstallationEmbedded, wall-mounted
    Appearance materialMetal shell
    Net weight≤3.8KG
    Surface treatmentBlack metal paint
    EnvironmentalStorage EnvironmentTemperature:-20℃~60℃
    Humidity:5%~95%
    Atmospheric Pressure:86kPa~104kPa
    Working EnvironmentTemperature:-10℃~50℃
    Humidity:10%~85%
    Atmospheric Pressure:86KPa~104KPa
    Packing listBar lcd display1pcs
    Power Cable1Pcs
    Support special requirements customization

    The design drawing as follows :

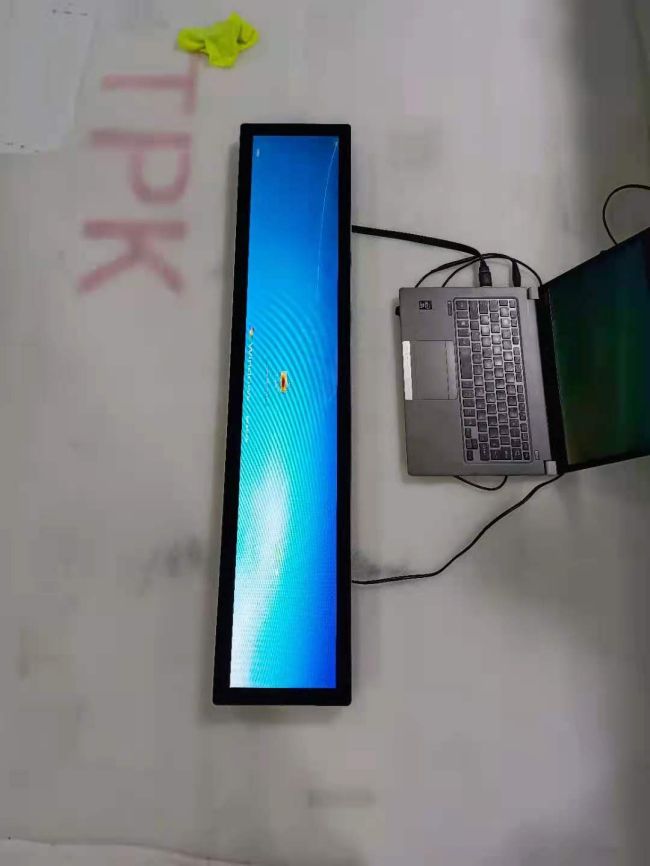

    Product physical photo for reference :



    The specification of Capacitive touch screen panel


    Touch MethodFinger or Pen
    Touch points10 Points
    Touch strength10-60g
    Finger touch time≥35,000,000 times
    Withstand pressure<10g
    Surface hardness≥7H
    storage temperature-15°C~40°C,<90%RH;40°C~70°C,<60%RH
    Relative humidity10%~90%RH at 40°C, non-condensing
    Response time<10ms
    Transmittance>85%
    thickness(1.1mm)+TopITO Film(0.125mm) +Bottom ITO Film(0.125mm)
    DurabilityTouch 50,000,000 times in the same position to work normally

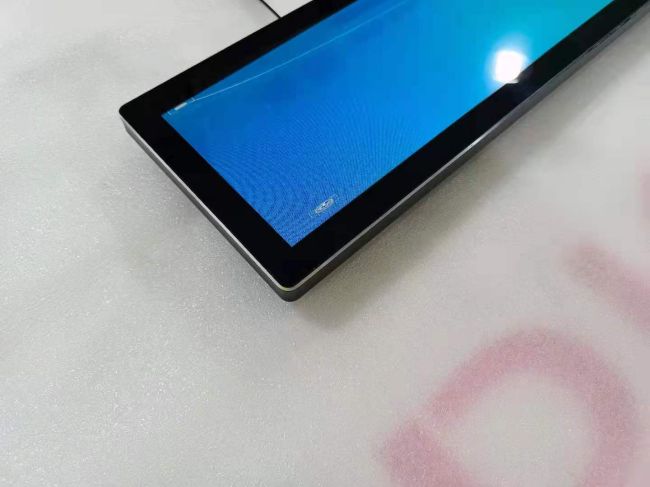

    Product Phycial Photo for reference



    Want To Get In Touch?


    If you would like to discuss your requirement or need any additional information on our Stretched (Cut) lcd monitor with touchscreen, and then please do not hesitate to contact our sales team.
