    Customized 18.9 Inch Square LCD Display TFT Ultra Wide LCD Display For Shop

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-BAR189MHMJ
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : Western Union, MoneyGram
    Supply Ability : 300pcs per month
    Delivery Time : 7~10 working days
    • Product Details
    • Company Profile

    Customized 18.9 Inch Square LCD Display TFT Ultra Wide LCD Display For Shop

    Customized 18.9 inch Square LCD display TFT ultra-wide LCD display for shop


    ZXTLCD Square LCD displays, square screens, and square monitors are increasingly popular in retail, museum, digital art, amusement and Gaming design installs where a niche and unique display is required. Particularly popular in Museum displays and display designs as well as art installs.



    The specification


    The specification
    Model NoProduct modelZXTLCD-BAR189MHMJ
    LCD Screen PanelScreen size18.9" LCD Panel
    Active display area340(H) X 340(V)mm
    Resolution934(V) X 934(H)
    Brightness500cd/m2
    Contrast ratio1200:1
    Display color1.07B 68% NTSC
    Backlight typea-Si TFT-LCD
    Viewing angles89/89/89/89 (Typ.)(CR≥10)
    Response time8 (Typ.)(G to G) ms
    Lifespan>30000 Hrs(24Hrs*7)
    Main boardCPUMSTAR V56(TSUMV56RUU)
    InterfacesUSB2.0
    HDMI*2
    TF/Audio/DC IN
    machine specificationOperating voltageDC 12V
    Power consumption≤30W

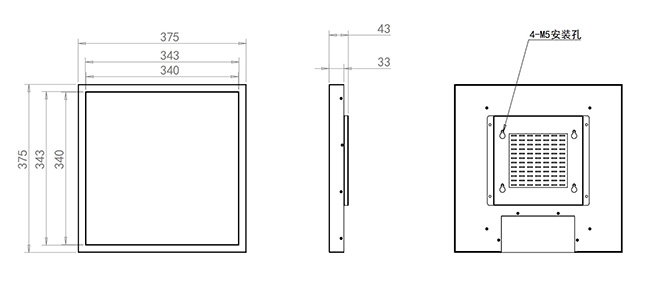

    Product size375(H)X375(V)X33(D)mm
    Speaker2 X 5W
    InstallationWall hanging
    Appearance materialMetal shell
    Net weight≤3.62KG
    Surface treatmentBlack metal paint
    EnvironmentalStorage EnvironmentTemperature:-10℃~50℃
    Humidity:10%~60% Non-Condensing
    Working EnvironmentTemperature:-20℃~60℃
    Humidity:≤ 90℃ Non-Condensing
    Packing listSquad lcd Monitor1pcs
    Power Cable1Pcs
    Support special requirements customization


    Multiple options available including square panel, panel and kit as well as enclosed square LCD monitor, and square chassis monitors. Interactive touchscreen options are also available as well as fully customised solutions to specifically meet your project requirements whether that be high brightness, ruggedization, extra thick touchscreens, or various input options such as HDMI, VGA, DVI etc.



    Touchscreens Available For Our ZXTLCD Square LCD Displays


    We are now able to offer fully customized Infra Red PCAP touchscreens for use with our Square LCD Displays and monitors. We can offer custom cover glass with oversized borders and cut outs, as well as Optical Bonding for sunlight readability or high ambient conditions. Please contact our technical sales team to discuss your project requirement in more detail.



    If you would like to discuss your requirement or need any additional information on our Square LCD display, and then please do not hesitate to contact our sales team.
