75 inch Floor standing streched bar display lcd android advertising
screen
Features of streched bar display :
1. Full HD 1920*1080, LCD screen, support display models of 16:3,
(Horizontal/Vertical,other display scale is acceptable) etc.
2. Multi-groups of on/off time schedule could be setted remotely
and control the display through Internet.
3. Interactive optical multi-points touch function, touch in two
points simultaneously.
4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM,WMV,DAT,
JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.
5. Scrolling texts in English and Chinese version are available,
various display modes for titles (Fonts and colors of letters,
background clolors, the relative attributes of rolling dirctions in
horizontal or vertical could be adjusted).
6. Support media contents combine by videos, pictures, flashes,
marquee etc.
7. Support uploading files through Wifi and cable network.
8. Intelligent system for arranging and playing programs, easy and
fast operation.
9. Support displaying in dual screens, play different video files
and audio contents in these two screens.
The specification
| The specification |
| Model No | Product model | ZXTLCD-BAR750AKJSY |
| LCD Screen Panel | Screen size | 75" LCD Panel |
| Active display area | 1649.66(H) X 535(V)mm |
| Resolution | 3840(V) X 1440(H) |
| Brightness | 500cd/m2 |
| Contrast ratio | 2000:1 |
| Display color | 16.7M |
| Backlight type | WLED |
| Viewing angles | 178°(H) X 178°(V) |
| Response time | 9ms |
| Lifespan | 50000 hours |
| Monitor PCB Board | CPU | T972 ,Quad core A35 |
| RAM | 2gb |
| ROM | 8gb EMMC |
| System | Android 9.0 |
| Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI |
| RTC real time clock | Support timing on / off function |
| Interfaces | 1*USB2.0 |
| 1*OTG USB |
| 1*RJ45 |
| Video formats | wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 |
| Photo formats | BMP,JPEG,PNG,GIF |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤60W |
| Product size | 1712(H)X598(V)X47.3(D)mm |
| Installation | Embedded, wall-mounted |
| Apperance material | Metal shell |
| Net weight | ≤38KG |
| Surface treatment | Black metal paint |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% |
| Atmospheric Pressure:86kPa～104kPa |
| Working Environment | Temperature:-10℃～50℃ |
| Humidity:10%～85% |
| Atmospheric Pressure:86KPa～104KPa |
| Packing list | Bar lcd display | 1pcs |
| Power Cable | 1Pcs |
| Support special requirements customization |

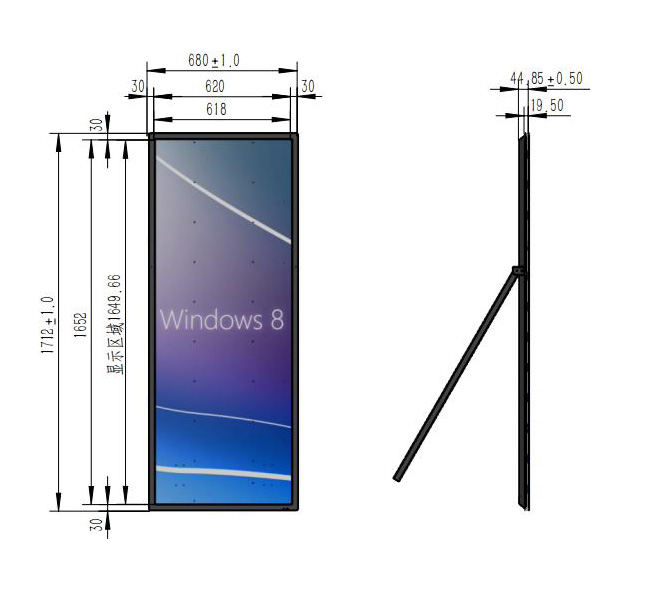

The design drawing as follows :
Product Physical Photo as follows :
More Physical Photo for reference
If you would like to discuss your requirement or need any
additional information on our stretched bar display, and then
please do not hesitate to contact our sales team.
