    48.8 Inch Supermarket Shelf Display Stretched Bar Lcd Screen For Advertisement

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-BAR488AJSY
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300pcs per month
    Delivery Time : 7~10 working days
    • Product Details
    • Company Profile

    48.8 Inch Supermarket Shelf Display Stretched Bar Lcd Screen For Advertisement

    48.8 inch supermarket shelf display stretched bar lcd screen for advertisement


    What’s the key parts for stretched bar lcd screen?


    Key parts is as following: Stretched LCD Panel, Power board etc.


    As you known, LCD Panel is very fragile, this why we have to use wooden box to pack the sample to ensure the safety in the transport. In general, LCD Panel wouldn’t go wrong without the disturbance of fatal external factors, such as almighty crash and soaking. So, please be careful when you carry this device in transit. Beside, Abnormal shutdown and long time overload working caused some damage to the power board and internal PC , this point is also common sense for end-user.



    The specification


    The specification
    Model NoProduct modelZXTLCD-BAR488AJSY
    LCD Screen PanelScreen size48.8" LCD Panel
    Active display area1209.6(H) X 226(V)mm
    Resolution3840(V) X 720(H)
    Brightness500cd/m2
    Contrast ratio2000:1
    Display color16.7M
    Backlight typeWLED
    Viewing angles89/89/89/89 (Typ.)(CR≥10)
    Response time9ms
    Lifespan50000 hours
    Monitor PCB BoardCPUT972 ,Quad core A35
    RAM2gb
    ROM8gb EMMC
    SystemAndroid 9.0
    Network support10M/100M Auto-adjust Gigabit Ethernet , WIFI
    RTC real time clockSupport timing on / off function
    Interfaces1*USB2.0
    1*OTG USB
    1*RJ45
    Video formatswmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
    Photo formatsBMP,JPEG,PNG,GIF
    machine specificationOperating voltage100-240V(50/60Hz)
    Power consumption≤60W
    Product size1242(H)X258(V)X53(D)mm
    InstallationEmbedded, wall-mounted
    Apperance materialMetal shell
    Net weight≤26KG
    Surface treatmentBlack metal paint
    EnvironmentalStorage EnvironmentTemperature:-20℃~60℃
    Humidity:5%~95%
    Atmospheric Pressure:86kPa~104kPa
    Working EnvironmentTemperature:-10℃~50℃
    Humidity:10%~85%
    Atmospheric Pressure:86KPa~104KPa
    Packing listBar lcd display1pcs
    Power Cable1Pcs
    Support special requirements customization

    The design drawing as follows :

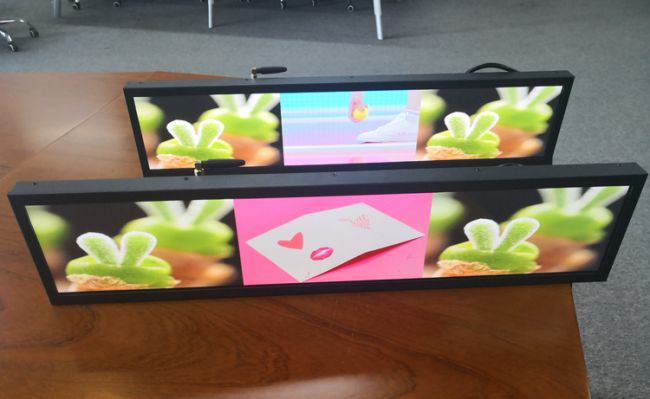

    Product Physical Photo as follows :



    If you would like to discuss your requirement or need any additional information on our stretched bar lcd screen, and then please do not hesitate to contact our sales team.
