36.2 inch Stretched Bar LCD Monitors for Cargo Rack Bus and
Cosmetic
Stretched Bar LCD Monitors are widely used in the.Gaming, Finance,
Leisure & Entertainment, Transportation and Retail Industries,
offering ease of use in areas with restricted space.
The specification
| The specification |
| Model No | Product model | ZXTLCD-BAR362AHMJ |
| LCD Screen Panel | Screen size | 36.2" LCD Panel |
| Active display area | 885.6(H) X 249(V)mm |
| Resolution | 1920(V) X 540(H) |
| Brightness | 500cd/m2 |
| Contrast ratio | 1200:1 |
| Display color | 16.7M |
| Backlight type | WLED |
| Viewing angles | 89°/89°/89°/89°(U/D/L/R) |
| Response time | 15ms |
| Lifespan | 50000 hours |
| Monitor PCB Board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
| RAM | 1G DDR3(1 G/2G for optional ) |
| ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) |
| Memory extension | TF Card extension with the highest support for 64GB |
| System | Android 8.1 |
| Internet | Support 2.4G WIFI connection |
| Interfaces | 1*USB2.0 |
| 1*OTG USB |
| 1*RJ45 |
| Video formats | wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 |
| Photo formats | BMP,JPEG,PNG,GIF |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤60W |
| Product size | 918(H)X283.5(V)X50(D)mm |
| Installation | Embedded, wall-mounted |
| Appearance material | Metal shell |
| Net weight | ≤6KG |
| Surface treatment | Black metal paint |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% |
| Atmospheric Pressure:86kPa～104kPa |
| Working Environment | Temperature:-10℃～50℃ |
| Humidity:10%～85% |
| Atmospheric Pressure:86KPa～104KPa |
| Packing list | Bar lcd display | 1pcs |
| Power Cable | 1Pcs |
| Support special requirements customization |

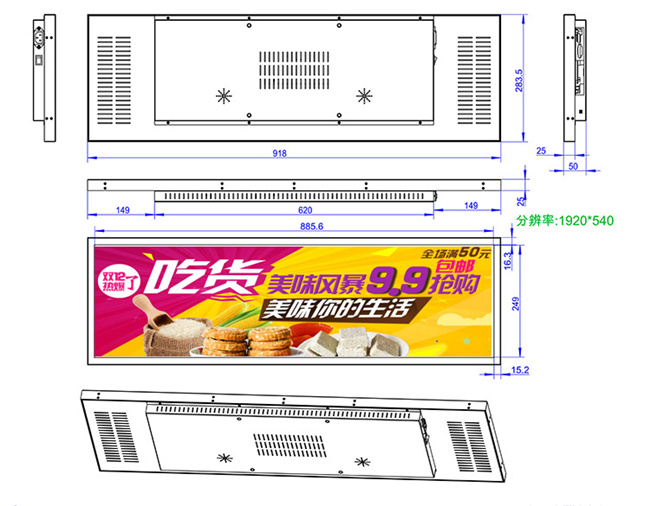

The design drawing as follows :

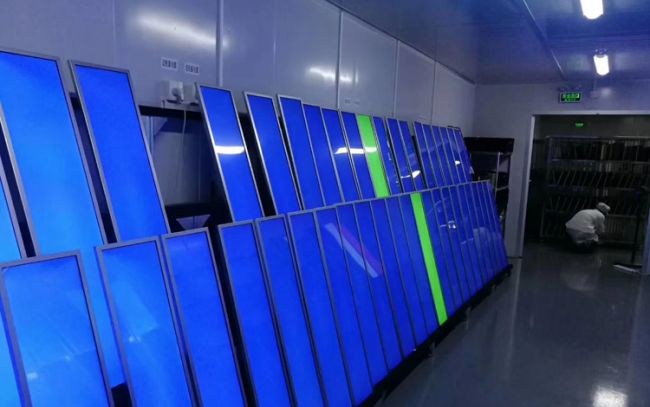

Product Physical Photo as follows :
FAQ :
1. How do ZXT LCD ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008
standards.
1.2 Extensive use of software in managing the production process
1.3 Stock up much screen panel in factory, and non-stop Power-on
test for each LCD Panel with 72 hours.
1.4.Dedicated quality assurance team with failure case analysis
process
1.5.Continuous staff training and education
2. How do ZXT LCD keep your price competitive?
Over the last decade, prices of many raw materials (e.g. copper,
chemicals) had doubled, tripled or quadrupled; Chinese currency RMB
had appreciated 31% over US dollar; And our labor cost also
increased significantly.
However, ZXT LCD have kept our pricing steady. This owns entirely
to our innovations in reducing cost, avoiding wastes and improving
efficiency. Our prices are very competitive in the industry at the
same quality level.
We believe in a win-win partnership with our customers. Our
partnership will be mutually beneficial if we can provide you an
edge on cost and quality.
3. What kinds of Stretched bar lcd display can ZXT LCD process?
Stretched lcd panel, stretched lcd monitor, stretched lcd monitor
with touchscreen , stretched lcd android all in one PC, stretched
lcd all in one PC etc.
4. Which essential factor are needed confirmation for Stretched Bar LCD Monitors before get a accurate cost?
4.1 Accurate screen size: various screen size with different cost
difference .
4.2 Internal PCB board configuration : In general, we default
Monitor PCB board with HDMI port, besides, the cost variance of
Android PCB board is only 75USD per unit, However, the main cost
variance depend on various internal PC configuration, please
consult our salesman about the cost of PC according to your
detailed requirements.
4.3 Any additional requirements need pay extra cost such as
anti-glare glass requirements.
4.4 Quantity : we also accept sample for testing as trail order,
For sample or few machine, we usually use wooden box or wooden
frame to pack the goods to ensure the safety in the transport. So,
the cost will be higher a little due to the extra package cost. If
you order a big quantity, we can use container to ship the goods,
no need extra wooden frame as outer package.
5. What’s the typical assemble process flow of Stretched Bar LCD Monitors?
Purchasing Square LCD Panel → Purchasing shell and electronic parts
→ Assemble → operating system installed → software installed
→Testing 72 hours →record → Visual Inspection.
6. What’s the key parts for Stretched Bar LCD Monitors?
Key parts is as following: Stretched LCD Panel, Power board etc.
As you known, LCD Panel is very fragile, this why we have to use
wooden box to pack the sample to ensure the safety in the
transport. In general, LCD Panel wouldn’t go wrong without the
disturbance of fatal external factors, such as almighty crash and
soaking. So, please be careful when you carry this device in
transit. Beside, Abnormal shutdown and long time overload working
caused some damage to the power board and internal PC , this point
is also common sense for end-user.
7. Which screen size of Stretched Bar LCD Monitors you have?
We have 19.5”/24”/28.1”/28.6”/35”/35.5”/36.2”/36.6”/37.6”/37.8”/46.6”/47.1”/48.8”/49.5”/58.4”/68.2”/39.4”/69.3”/75”/86” for choice at present.
8,What’s the HS code for this Stretched Bar LCD Monitors?
HS code is 8528591090
9, What's the delivery time?
Depend on product and quantity of your order, If you can accept
regular screen size and type , sample could be sent to you within
5~15 working days after receiving your fund . For 50pcs, we also
can delivery out within 20 days.
If you would like to discuss your requirement or need any
additional information on our Stretched Bar LCD Monitors, and then please do not hesitate to contact our sales team.
