    35.1 Inch 1920X540 Wall Mount LCD Screen For Bus Metro Installation

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-BAR351AHMJ
    Certification : CE/Rohs/FCC/ERP Energy Label
    Price : Negotiate
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300pcs per month
    Delivery Time : 7~10 working days
    • Product Details
    • Company Profile

    35.1 Inch 1920X540 Wall Mount LCD Screen For Bus Metro Installation

    35.1 inch 1920X540 Wall Mount Stretched screen for bus/metro installation


    Stretched screen refer to a long strip liquid crystal display with an aspect ratio greater than that of ordinary displays. Due to its diverse sizes, clear displays, and rich functions, it is used in retail, transportation, banking, enterprises, and other industries, and its scope of use is expanding. The combination of ZXTLCD's Stretched screen displays the information release system supports basic functions such as split-screen playback, time-sharing playback, and timing switch on and off; supports terminal group management, account authority management, and system security management; supports extended functions, such as object extraction and playback, Multi-screen synchronization, linkage playback, etc. Relying on excellent hardware quality, comprehensive software functions, and powerful system customization capabilities, ZXTLCD's Stretched screen have been exported to more than 30 countries around the world. Application scenarios include retail shelves, subway platforms, bank windows, corporate elevators, and so on.



    The specification


    The specification
    Model NoProduct modelZXTLCD-BAR351AHMJ
    LCD Screen PanelScreen size35.1" LCD Panel
    Active display area885.6(H) X 249(V)mm
    Resolution1920(V) X 540(H)
    Brightness500cd/m2
    Contrast ratio1200:1
    Display color16.7M
    Backlight typeWLED
    Viewing angles89°/89°/89°/89°(U/D/L/R)
    Response time9.5ms
    Lifespan50000 hours
    Monitor PCB BoardCPURockchip PX30 Quad core ARM Cotex-A35
    RAM1G DDR3(1 G/2G for optional )
    ROM8G EMMC(8G/16G/32G/64GEMMC for optional)
    Memory extensionTF Card extension with the highest support for 64GB
    SystemAndroid 8.1
    InternetSupport 2.4G WIFI connection
    Interfaces1*USB2.0
    1*OTG USB
    1*RJ45
    Video formatswmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
    Photo formatsBMP,JPEG,PNG,GIF
    machine specificationOperating voltage100-240V(50/60Hz)
    Power consumption≤45W
    Product size917.5(H)X281(V)X49(D)mm
    InstallationEmbedded, wall-mounted
    Appearance materialMetal shell
    Net weight≤4.5KG
    Surface treatmentBlack metal paint
    EnvironmentalStorage EnvironmentTemperature:-20℃~60℃
    Humidity:5%~95%
    Atmospheric Pressure:86kPa~104kPa
    Working EnvironmentTemperature:-10℃~50℃
    Humidity:10%~85%
    Atmospheric Pressure:86KPa~104KPa
    Packing listBar lcd display1pcs
    Power Cable1Pcs
    Support special requirements customization

    The design drawing as follows :

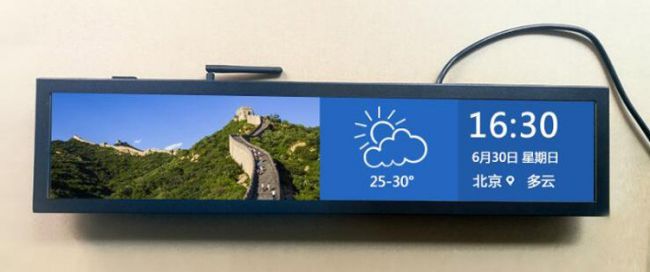

    Product Physical Photo as follows :



    Why choose Stretched screen from ZXT LCD?


    ZXT LCD have more than 30 workers with advanced dust-free plant. ZXT LCD Owned many technical and design patents in different professional fields. ZXT LCD promise that we provide one-stop service for customers from raw material procurement, design, R&D, production and after-sales service. Therefore, the quality is guaranteed and the price has an advantage. ZXT LCD guarantee the delivery on time, the delivery period is guaranteed, and the product will pass the aging test for more than 72 hours before leaving the factory to ensure the product yield.



    If you would like to discuss your requirement or need any additional information on our Stretched screen, and then please do not hesitate to contact our sales team.
